2000 Camaro LS1 Engines Harness Connectors

In-Line Connector C100 (10 cavities, Black) Engine to forward lamp harness, in the engine compartment, above the right wheelhouse
In-Line Connector C101 (10 cavities, Gray) Engine to forward lamp harness, in the engine compartment, above the right wheelhouse
In-Line Connector C105 (8 cavities, Black) Engine to forward lamp harness, in the engine compartment, above the right wheelhouse
In-Line Connector C220 (10 cavities, White) IP to engine harness, under the right side of the IP, behind the knee bolster
In-Line Connector C230 (10 cavities, Blue) IP to engine harness, under the right side of the IP, behind the knee bolster



In-Line Connector C100

Connector Part Information
bullet1206-5425
bullet10-Way F Metri-pack 150 Series (BLK)
Connector Part Information
bullet1204-8253
bullet10 - Way M Metri-pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A PNK 639 Fused Feed Input A PNK/WHT 639 Fused Feed Input
B DK GRN/WHT 459 A/C Compressor Relay Control B DK GRN/WHT 459 A/C Compressor Relay Control
C DK GRN 59 A/C Compressor Clutch Solenoid Feed C DK GRN 59 A/C Compressor Clutch Solenoid Feed
D GRY 596 (V8 VIN G) (+NW9) Reference Voltage Feed - 5 Volt Reference D GRY 596 (V8 VIN G) (+NW9) Reference Voltage Feed - 5 Volt Reference
E DK BLU 417 (V8 VIN G) (+NW9) Throttle Position Sensor Signal E DK BLU 417 (V8 VIN G) (+NW9) Throttle Position Sensor Signal
F BRN 86 (V6 VIN K) Brake Pedal Switch Output F BRN 86 (V6 VIN K) Brake Pedal Switch Output
G PNK 239 Fused Input Feed G PNK 239 Fused Input Feed
H DK BLU 473 Coolant Fan Relay Control H DK BLU 473 Coolant Fan Relay Control
J DK GRN 335 Coolant Fan Relay Control J DK GRN 335 Coolant Fan Relay Control
K BLK 452 (V8 VIN G) (+NW9) Sensor Return K BLK 452 (V8 VIN G) (+NW9) Sensor Return



In-Line Connector C101

Connector Part Information
bullet1206-5426
bullet10-Way F Metri-pack 150 Series (GRY)
Connector Part Information
bullet1206-5648
bullet10-Way M Metri-pack 150 Series (GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YEL/BLK 625 Vehicle Anti-Theft System Starter Enable Relay Output - Coil A YEL/BLK 625 Vehicle Anti-Theft System Starter Enable Relay Output - Coil
B BLK/WHT 451 (V6 VIN K) Ground B BLK/WHT 451 (V6 VIN K) Ground
B PNK 839 (V8 VIN G) Fused Input Feed B PNK 839 (V8 VIN G) Fused Input Feed
C BRN 436 (V8 VIN G) Idle Speed Control Motor Relay Output-Coil C BRN 436 (V8 VIN G) Idle Speed Control Motor Relay Output-Coil
D DK GRN/WHT 465 Fuel Pump Relay Feed - Coil D DK GRN/WHT 465 Fuel Pump Relay Feed - Coil
E PNK 439 Fused Input Feed E PNK/BLK 439 Fused Input Feed
F -- -- Not Used F -- -- Not Used
G ORN 340 Fused Input Feed G ORN 340 Fused Input Feed
H BLK/WHT 451 Ground H BLK/WHT 451 Ground
J PPL/WHT 1035 (V6 VIN K) Starter Relay Feed-Coil J PPL/WHT 1035 (V6 VIN K) Starter Relay Feed-Coil
K DK GRN 220 (V6 VIN K) Vehicle Anti-Theft System Signal-Starter Inhibit K DK GRN 220 (V6 VIN K) Vehicle Anti-Theft System Signal-Starter Inhibit
K GRY/BLK 1687 (V8 VIN G) (+NW9) Ignition Retard Signal K GRY/BLK 1687 (V8 VIN G) (+NW9) Ignition Retard Signal

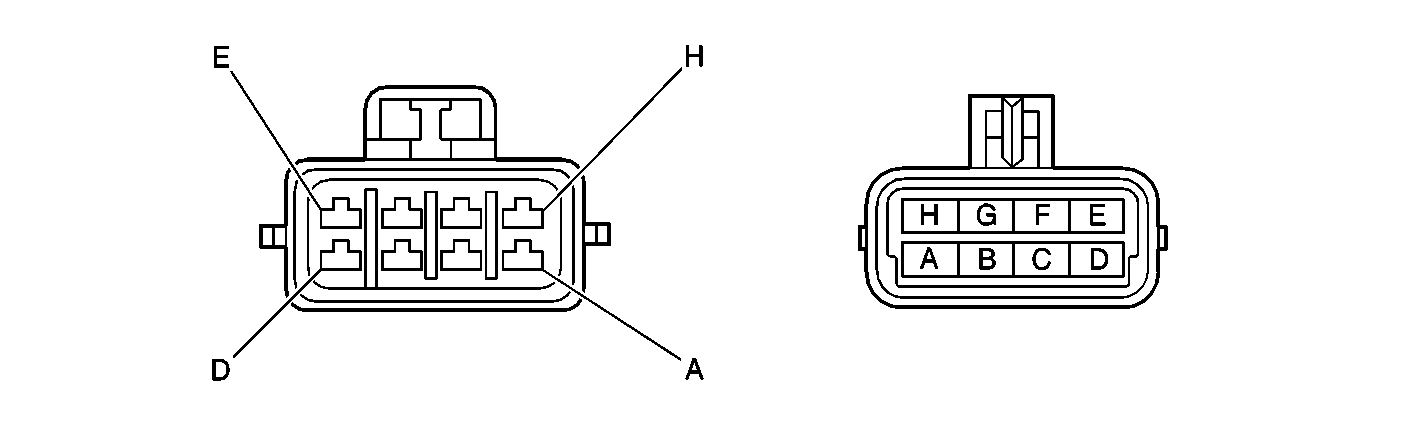

In-Line Connector C105

Connector Part Information
bullet1204-7937
bullet8-Way F Metri-pack 150 Series (BLK)
Connector Part Information
bullet1205-2454
bullet8-Way M Metri-pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A PPL/WHT 1572 (V6 VIN K) (M30, - NW9) Traction Control System Indicator Lamp Output - Failure A PPL/WHT 1572 (V6 VIN K) (M30, - NW9) Traction Control System Indicator Lamp Output - Failure
B PNK 539 Fused Output - Ignition B PNK 539 Fused Output - Ignition
C BRN/WHT 1571 (V6 VIN K) (M30, - NW9) Traction Control System Switch Signal C BRN/WHT 1571 (V6 VIN K) (M30, - NW9) Traction Control System Switch Signal
D ORN/BLK 463 (V6 VIN K) (+ NW9) Traction Control System Signal - Torque Desired D ORN/BLK 463 (V6 VIN K) (+ NW9) Traction Control System Signal - Torque Desired
D DK GRN 83 (V8 VIN G) Cruise Control Signal-Disengage D DK GRN 83 (V8 VIN G) Cruise Control Signal-Disengage
E -- -- Not Used E -- -- Not Used
F TAN/BLK 464 (V6 VIN K) (+ NW9) Traction Control System Signal - Torque Delivered F TAN/BLK 464 (V6 VIN K) (+ NW9) Traction Control System Signal - Torque Delivered
F WHT 85 (V8 VIN G) Cruise Control Indicator Lamp Output F WHT 85 (V8 VIN G) Cruise Control Indicator Lamp Output
G WHT 121 (+ NW9) Tachometer Signal G WHT 121 (+ NW9) Tachometer Signal
H ORN 1440 (V8 VIN G) Fused Input Feed H ORN 1440 (V8 VIN G) Fused Input Feed



In-Line Connector C220

Connector Part Information
bullet1206-4769
bullet10-Way F Metri-pack 150 Series (NAT)
Connector Part Information
bullet1206-4770
bullet10-Way M Metri-pack 150 Series (NAT)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A TAN 31 Oil Pressure Indicator Lamp Output A TAN 31 Oil Pressure Indicator Lamp Output
B GRY 48 (With MM6/M49) Clutch Switch Signal - Clutch Anticipate B GRY 48 (With MM6/M49) Clutch Switch Signal - Clutch Anticipate
C PNK 539 (With M30) Fused Output - Ignition C PNK 539 (With M30) Fused Output - Ignition
D PPL 420 (With M30) Brake Pedal Switch Output - Torque Converter Clutch D PPL 420 (With M30) Brake Pedal Switch Output - Torque Converter Clutch
E BLK/WHT 451 Ground E BLK/WHT 451 Ground
F ORN/BLK 1061 (V6 VIN K) UART Serial Data Signal F ORN/BLK 1061 (V6 VIN K) UART Serial Data Signal
G BRN 141 (With MM6/M49) Fused Output - Ignition G BRN 141 (With MM6/M49) Fused Output - Ignition
H ORN/BLK 434 (With M30)Transmission Mounted Neutral Safety Switch Signal H ORN/BLK 434 (With M30)Transmission Mounted Neutral Safety Switch Signal
H LT GRN 24 (With MM6/M49) Backup Lamp Feed H LT GRN 24 (With MM6/M49) Backup Lamp Feed
J YEL/BLK 625 Vehicle Anti-Theft System Starter Enable Relay Output - Coil J YEL/BLK 625 Vehicle Anti-Theft System Starter Enable Relay Output - Coil
K DK GRN/WHT 817 Vehicle Speed Signal-4000 Pulses per Mile K DK GRN/WHT 817 Vehicle Speed Signal-4000 Pulses per Mile



In-Line Connector C230

Connector Part Information
bullet1206-4871
bullet10-Way F Metri-pack 150 Series (BLU)
Connector Part Information
bullet1206-4872
bullet10-Way M Metri-pack 150 Series (BLU)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A LT BLU/BLK 1688 (V6 VIN K) Reference Voltage Feed - 5V A GRY 474 (V6 VIN K) Reference Voltage Feed - 5V
A GRY 474 (V8 VIN G) Reference Voltage Feed - 5V A GRY 474 (V8 VIN G) Reference Voltage Feed - 5V
B BRN/WHT 419 Service Engine Soon Indicator Feed B BRN/WHT 419 Service Engine Soon Indicator Feed
C WHT 1310 Canister Vent Valve Solenoid Output C WHT 1310 Canister Vent Valve Solenoid Output
D TAN 800 (V6 VIN K) UART Serial Data Signal D TAN 800 (V6 VIN K) UART Serial Data Signal
E DK BLU 229 Theft Deterrent - Fuel Enable Feed E DK BLU 229 Theft Deterrent - Fuel Enable Feed
F DK GRN/WHT 762 A/C Request Signal F DK GRN/WHT 762 A/C Request Signal
G GRY 720 Sensor Return G GRY 720 Sensor Return
H DK GRN 890 Fuel Tank Pressure Sensor Signal H DK GRN 890 Fuel Tank Pressure Sensor Signal
J PPL 1589 Fuel Gauge Sensor Signal J PPL 1589 Fuel Gauge Sensor Signal
K DK GRN 1049 PCM Serial Data Signal - Class 2 K DK GRN 1049 PCM Serial Data Signal - Class 2
