1998 Camaro LS1 Engines Harness Connectors

In-Line Connector C100 (10 cavities, Black) Engine to forward lamp harness, in the engine compartment, above the right wheelhouse
In-Line Connector C101 (10 cavities, Gray) Engine to forward lamp harness, in the engine compartment, above the right wheelhouse
In-Line Connector C105 (8 cavities, Black) Engine to forward lamp harness, in the engine compartment, above the right wheelhouse
In-Line Connector C210 (8 cavities, White) instrument panel to engine harness, under the right side of the instrument panel, behind the knee bolster
In-Line Connector C220 (10 cavities, White) Instrument panel to engine harness, under the right side of the instrument panel, behind the knee bolster
In-Line Connector C230 (10 cavities, Blue) Instrument panel to engine harness, under the right side of the instrument panel, behind the knee bolster



In-Line Connector C100

Connector Part Information
bullet12065425
bullet10-Way F Metri-Pack 150 Series (BLK)
Connector Part Information
bullet12048253
bullet10 - Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A PNK 639 Power feed from injector fuse 9 A PNK 639 Power feed from injector fuse 9
B GRN/WHT 459 A/C compressor relay control B GRN/WHT 459 A/C compressor relay control
C DK GRN 59 A/C compressor clutch solenoid feed C DK GRN 59 A/C compressor clutch solenoid feed
D GRY 596 Reference voltage feed - 5 volt reference (V8 VIN G) D GRY 596 Reference voltage feed - 5 volt reference (V8 VIN G)
E DK BLU 417 Throttle position sensor signal (V8 VIN G) E DK BLU 417 Throttle position sensor signal (V8 VIN G)
F -- -- Not Used F -- -- Not Used
G PNK 239 Power feed from ignition fuse (OBD II) G PNK 239 Power feed from ignition fuse (OBD II)
H DK BLU 473 Coolant fan relay control H DK BLU 473 Coolant fan relay control
J DK GRN 335 Coolant fan relay control J DK GRN 235 Coolant fan relay control
K BLK 452 Sensor return (V8 VIN G) K BLK 452 Sensor return (V8 VIN G)



In-Line Connector C101

Connector Part Information
bullet12065426
bullet10-Way F Metri-Pack 150 Series (GRY)
Connector Part Information
bullet12065648
bullet10-Way M Metri-Pack 150 Series (GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YEL/BLK 625 Vehicle anti-theft system starter enable relay output-coil A YEL/BLK 625 Vehicle anti-theft system starter enable relay output-coil
B PNK 839 Fuse output-ignition 1-type III fuse (V8 VIN G) B PNK 839 Fuse output-ignition 1-type III fuse (V8 VIN G)
C BRN 436 Air pump relay control C BRN 436 Air pump relay control
D GRN/WHT 465 Fuel pump relay control D GRN/WHT 465 Fuel pump relay control
E PNK 439 Fuse output-ignition 1-type III fuse E PNK/BLK   Fuse output-ignition 1-type III fuse
F -- -- Not Used F -- -- Not Used
G ORN 340 Fuse output-battery-type III fuse G ORN 340 Fuse output-battery-type III fuse
H BLK/WHT 451 Ground H BLK/WHT 451 Ground
J -- -- Not Used I -- -- Not Used
K GRY/BLK 1687 Ignition retard signal (V8 VIN G) K GRY/BLK 1687 Ignition retard signal (V8 VIN G)



In-Line Connector C105

Connector Part Information
bullet12047937
bullet8-Way F Metri-Pack 150 Series (BLK)
Connector Part Information
bullet12052454
bullet8-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A PPL/WHT 1572 Traction control system indicator lamp output-failure A PPL/WHT 1572 Traction control system indicator lamp output-failure
B PNK 539 Fuse output-ignition 1--type III fuse B PNK 539 Fuse output-ignition --type III fuse1
C BRN/WHT 1571 Traction control system switch signal C BRN/WHT 1571 Traction control system switch signal
D DK GRN 83 Cruise control signal-disengage (V6 VIN K) D DK GRN 83 Cruise control signal-disengage (V6 VIN K)
E TAN 800 Serial data signal E TAN 800 Serial data signal
F WHT 85 Cruise control indicator lamp output (V6 VIN K) F WHT 85 Cruise control indicator lamp output (V6 VIN K)
G WHT 121 Tachometer signal G WHT 121 Tachometer signal
H PPL 421 Air injection reaction solenoid relay output-coil H PPL 421 Air injection reaction solenoid relay output-coil



In-Line Connector C210

Connector Part Information
bullet1206-5398
bullet8-Way F Metri-Pack 150 Series (Neutral)
Connector Part Information
bullet1206-5396
bullet8-Way M Metri-Pack 150 Series (Neutral)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A GRY 598 Reference voltage feed--5 volt reference A GRY 598 Reference voltage feed--5 volt reference
B WHT 1310 Cannister vent valve solenoid output B WHT 1310 Cannister vent valve solenoid output
C GRY 720 Sensor return C GRY 720 Sensor return
D -- -- Not Used D -- -- Not Used
E DK BLU 1936 Fuel gauge sensor signal E DK Blue 1936 Fuel gauge sensor signal
F DK GRN 890 Fuel tank pressure sensor signal F DK GRN 890 Fuel tank pressure sensor signal
G -- -- Not Used G -- -- Not Used
H PPL 30 Fuel Gauge Sensor Signal H PPL 30 Fuel Gauge Sensor Signal



In-Line Connector C220

Connector Part Information
bullet12064769
bullet10-Way F Metri-Pack 150 Series (NAT)
Connector Part Information
bullet12064770
bullet10-Way M Metri-Pack 150 Series (NAT)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A RED 225 Generator feed to instrument cluster A RED 225 Generator feed to instrument cluster
B TAN 31 Oil pressure feed to instrument cluster B TAN 31 Oil pressure feed to instrument cluster
C BRN/WHT 1173 Low oil level indicator lamp output C BRN/WHT 1173 Low oil level indicator lamp output
D -- -- Not Used D -- -- Not Used
E -- -- Not Used E -- -- Not Used
F BLK/WHT 451   F 451
G GRN/WHT 817 Vehicle speed signal G GRN/WHT 817 Vehicle speed signal
H WHT 375 Skip shift indicator control (V8 VIN G Manual transmission) H WHT 375 Skip shift indicator control (V8 VIN G Manual transmission)
J YEL/BLK 625 Vehicle anti-theft system starter enable relay output--coil J YEL/BLK 625 Vehicle anti-theft system starter enable relay output--coil
K DK GRN 135 Coolant temperature feed to instrument cluster K DK GRN 135 Coolant temperature feed to instrument cluster

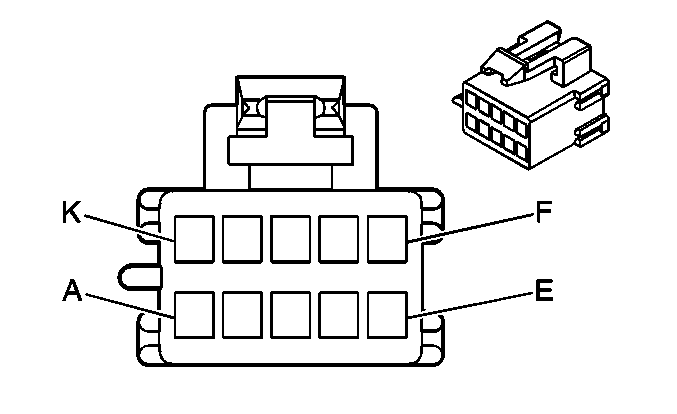

In-Line Connector C230

Connector Part Information
bullet12064871
bullet10-Way F Metri-Pack 150 Series (BLU)
Connector Part Information
bullet12064872
bullet10-Way M Metri-Pack 150 Series (BLU)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A GRY 48 Clutch anticipate signal (V6 VIN K Only A GRY 48 Clutch anticipate signal (V6 VIN K Only
B BRN/WHT 419 Service Engine Soon indicator feed B BRN/WHT 419 Service Engine Soon indicator feed
C -- -- Not Used C -- -- Not Used
D WHT 121 Tachometer signal to instrument cluster D WHT 121 Tachometer signal to instrument cluster
E DK BLU 229 Theft deterrent-fuel enable feed E DK BLU 229 Theft deterrent-fuel enable feed
F DK GRN/WHT 762 A/C request signal F DK GRN/WHT 762 A/C request signal
G PNK 539 Brake pedal switch output--torque convertor clutch (V6 VIN K Auto Trans) G PNK 539 Brake pedal switch output--torque convertor clutch (V6 VIN K Auto Trans)
G BRN 141 Fuse output-ignition 3-type III fuse (V6 VIN K MAN TRANS) G BRN 141 Fuse output-ignition 3-type III fuse (V6 VIN K MAN TRANS)
H PPL 420 (Automatic) TCC switch power feed H PPL 420 (Automatic) TCC switch power feed
J ORN/BLK 434 (Automatic) Park/Neutral feed from transmission range switch J ORN/BLK 434 (Automatic) Park/Neutral feed from transmission range switch
J LT GRN 24 Back-up lamp feed (V6 VIN K Manual transmission) J LT GRN 24 Back-up lamp feed (V6 VIN K Manual transmission)
K PPL 1807 Output field service enable K PPL 1807 Output field service enable
