Engine Controls Schematics: 2001 Chevrolet Camaro

Figure 1: Power and Ground
Figure 2: Data Link Connector

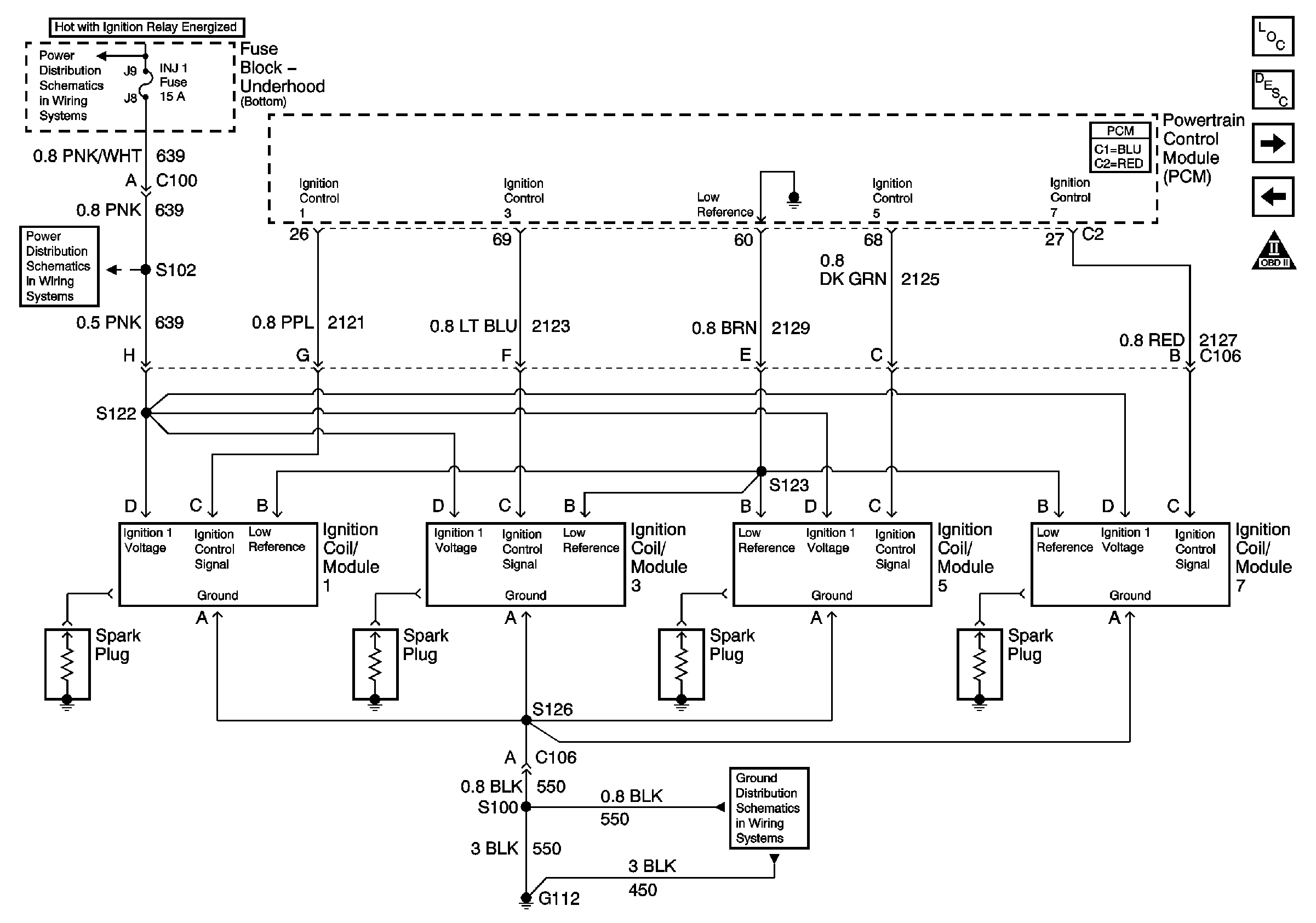

Figure 3: Ignition Modules/Coils, Bank 1
Figure 4: Ignition Modules/Coils, Bank 2
Figure 5: Camshaft Position Sensor, Crankshaft Position Sensor, and Knock Sensors
Figure 6: BCM and Fuel Pump
Figure 7: Fuel Tank Unit
Figure 8: Fuel Injectors
Figure 9: Engine Sensors
Figure 10: Oxygen Sensors
Figure 11: AIR Pump and IAC
Figure 12: BCM, Cruise Control Module, EBCM, IPC, Radio, and VSS
Figure 13: EVAP
Figure 14: Cruise Control Module, ECT Sensor, Engine Oil Level Switch and Generator
Figure 15: Cruise Control Clutch Switch and Manual Transmission
Figure 16: Automatic Transmission and Stop Lamp Switch
Figure 17: Automatic Transmission and Park/Neutral Position Switch
Figure 18: A/C Compressor Control
Figure 19: Cooling Fans



FIG 1

FIG 2

FIG 3

FIG 4

FIG 5

FIG 6

FIG 7

FIG 8

FIG 9

FIG 10

FIG 11

FIG 12

FIG 13

FIG 14

FIG 15

FIG 16

FIG 17

FIG 18

FIG 19

Modified LS1 wiring harness.

modified 2000 ls1 harness, emissions removed, a/c removed, for manual transmission
