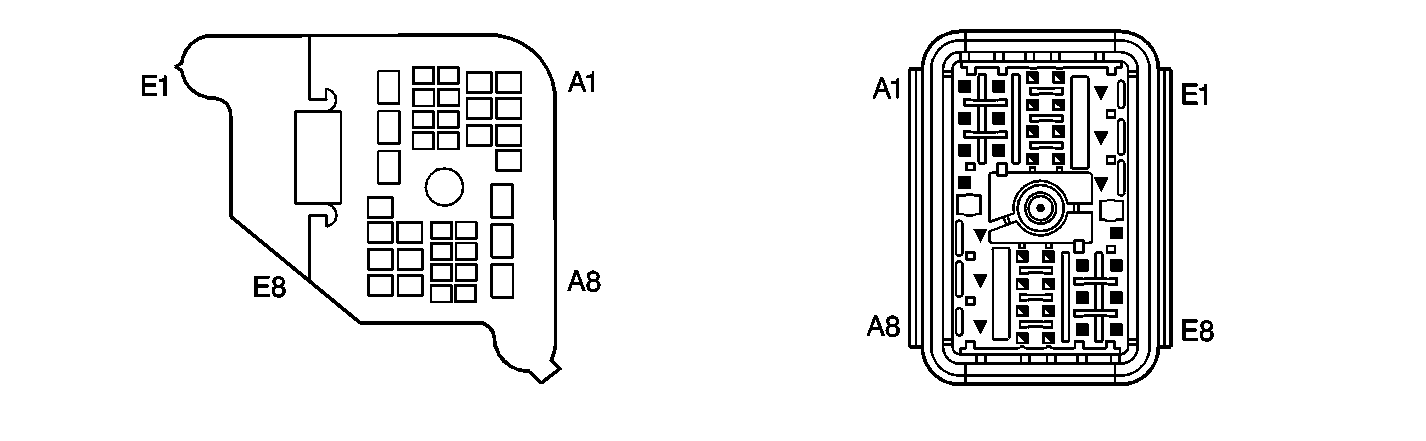

C100 (Engine Harness Inline to I/P Harness, Except
Luxury)
 |
| Connector Part
Information |
 | 12146331 |
| 36 Way F Metri-Pack 150, 180, 630 Series (LT GRY) |
|
Connector Part
Information |
| 12176348 |
| 36 Way M Metri-Pack 150, 180, 630 Series (LT GRY) |
|
| Pin |
Wire Color |
Circuit No. |
Function |
Pin |
Wire Color |
Circuit No. |
Function |
| A1 |
WHT |
17 |
Stoplamp Switch Output (Pickup) |
A1 |
WHT |
17 |
Stoplamp Switch Output (Pickup) |
| A1 |
RED |
542 |
Fuse Output Battery, Type II Fuse
(Suburban/Utility) |
A1 |
RED |
542 |
Fuse Output Battery, Type II Fuse
(Suburban/Utility) |
| A2 |
PNK |
1020 |
Ignition Feed - Off, Run, Crank (Automatic
Transmission) |
A2 |
PNK |
1020 |
Ignition Feed - Off, Run, Crank (Automatic
Transmission) |
| A3 |
ORN |
1440 |
Fuse Output Battery, Type III Fuse |
A3 |
ORN |
1440 |
Fuse Output Battery, Type III Fuse |
| A4 |
DK GRN |
29 |
Horn Feed |
A4 |
DK GRN |
29 |
Horn Feed |
| A6 |
RED |
42 |
Fuse Output Battery, Type II Fuse |
A6 |
RED |
42 |
Fuse Output Battery, Type II Fuse |
| A7 |
RED |
142 |
Fuse Output Battery, Type II Fuse |
A7 |
RED |
142 |
Fuse Output Battery, Type II Fuse |
| A8 |
RED |
242 |
Fuse Output Battery, Type II Fuse |
A8 |
RED |
242 |
Fuse Output Battery, Type II Fuse |
| B1 |
LT BLU |
20 |
Stop Lamp Feed (Pick-Up Only) |
B1 |
LT BLU |
20 |
Stop Lamp Feed (Pick-Up Only) |
| B2 |
WHT |
1294 |
EVO Solenoid Feed |
B2 |
WHT |
1294 |
EVO Solenoid Feed |
| B3 |
BRN |
1295 |
EVO Solenoid Output |
B3 |
BRN |
1295 |
EVO Solenoid Output |
| B5 |
DK GRN |
389 |
Vehicle Speed Signal (Gas) |
B5 |
DK GRN |
399 |
Vehicle Speed Signal (Gas) |
| B6 |
-- |
-- |
Not Used |
B6 |
-- |
-- |
Not Used |
| B7 |
PPL |
1807 |
Serial Data Class 2 |
B7 |
PPL |
1807 |
Serial Data Class 2 |
| B8 |
ORN |
1040 |
Fuse Output Battery, Type III Fuse
(Suburban/Utility) |
B8 |
ORN |
1040 |
Fuse Output Battery, Type III Fuse
(Suburban/Utility) |
| C1 |
BLK |
28 |
Horn Relay Output Coil |
C1 |
BLK |
28 |
Horn Relay Output Coil |
| C2 |
PPL |
30 |
Fuel Gauge Sensor Signal (Gas) |
C2 |
PPL |
30 |
Fuel Gauge Sensor Signal (Gas) |
| C2 |
YEL |
1737 |
Transmission Mounted Neutral Safety Switch
Output-Park/Neutral (Diesel) |
C2 |
YEL |
1737 |
Transmission Mounted Neutral Safety Switch
Output-Park/Neutral (Diesel) |
| C3 |
BRN |
25 |
Charge Indicator Lamp Output |
C3 |
BRN |
25 |
Charge Indicator Lamp Output |
| C4 |
GRY/BLK |
1596 |
Water Heater Control Solenoid Output
(Suburban/Utility) (Gas) |
C4 |
GRY/BLK |
1596 |
Water Heater Control Solenoid Output
(Suburban/Utility) (Gas) |
| C4 |
PPL/WHT |
821 |
Vehicle Speed Sensor Signal (Diesel) |
C4 |
PPL/WHT |
821 |
Vehicle Speed Sensor Signal (Diesel) |
| C5 |
LT GRN/BLK |
822 |
Transmission Mounted Neutral Safety Switch
Output, Park/Neutral (Diesel) |
C5 |
LT GRN/BLK |
822 |
Transmission Mounted Neutral Safety Switch
Output, Park/Neutral (Diesel) |
| C6 |
TAN/WHT |
33 |
Brake Warning Indicator Lamp Output |
C6 |
TAN/WHT |
33 |
Brake Warning Indicator Lamp Output |
| C7 |
PNK |
139 |
Fuse Output Ignition I, Type III Fuse |
C7 |
PNK |
139 |
Fuse Output Ignition I, Type III Fuse |
| C8 |
LT GRN |
867 |
ABS Failure Indicator Lamp Output |
C8 |
LT GRN |
867 |
ABS Failure Indicator Lamp Output |
| D1 |
TAN/WHT |
799 |
Diagnostic Signal, ABS (Diesel) |
D1 |
TAN/WHT |
799 |
Diagnostic Signal, ABS (Diesel) |
| D2 |
LT BLU/BLK |
396 |
Cruise Control Signal, Engaged (Automatic
Transmission) |
D2 |
LT BLU/BLK |
396 |
Cruise Control Signal, Engaged (Automatic
Transmission) |
| D2 |
BRN/WHT |
379 |
Cruise Control, Clutch Pedal Switch Output
(Manual Transmission) |
D2 |
BRN/WHT |
379 |
Cruise Control, Clutch Pedal Switch Output
(Manual Transmission) |
| D2 |
YEL/BLK |
1827 |
Vehicle Speed Signal, 128,000 Pulses Per
Mile (Diesel) |
D2 |
YEL/BLK |
1827 |
Vehicle Speed Signal, 128,000 Pulses Per
Mile (Diesel) |
| D3 |
LT GRN |
24 |
Backup Lamp Feed |
D3 |
LT GRN |
24 |
Backup Lamp Feed |
| D4 |
DK GRN/WHT |
817 |
Vehicle Speed Signal, 4000 Pulses Per Mile
(Gas) |
D4 |
DK GRN/WHT |
817 |
Vehicle Speed Signal, 4000 Pulses Per Mile
(Gas) |
| D4 |
DK BLU |
507 |
Glow Plug Indicator Lamp Signal (Diesel) |
D4 |
DK BLU |
507 |
Glow Plug Indicator Lamp Signal (Diesel) |
| D6 |
BLK/WHT |
1695 |
S4WD Front Wheel Lock Telltale Feed |
D6 |
BLK/WHT |
1695 |
S4WD Front Wheel Lock Telltale Feed |
| D7 |
LT GRN |
66 |
Air Conditioning Switch Output |
D7 |
LT GRN |
66 |
Air Conditioning Switch Output |
| D8 |
BRN |
441 |
Fuse Output Ignition 3, Type III Fuse |
D8 |
BRN |
441 |
Fuse Output Ignition 3, Type III Fuse |
| E1 |
PPL/WHT |
1035 |
Starter Relay Feed For Relay Coil (Manual
Transmission) |
E1 |
PPL/WHT |
1035 |
Starter Relay Feed For Relay Coil (Manual
Transmission) |
| E1 |
PPL |
806 |
Fuse Output Crank, Type III Fuse (Automatic
Transmission) |
E1 |
PPL |
806 |
Fuse Output Crank, Type III Fuse (Automatic
Transmission) |
| E2 |
PNK |
3 |
Ignition Switch Output, Ignition 1 |
E2 |
PNK |
3 |
Ignition Switch Output, Ignition 1 |
| E3 |
RED |
342 |
Fuse Output Battery, Type II Fuse |
E3 |
RED |
342 |
Fuse Output Battery, Type II Fuse |
| E5 |
BRN |
241 |
Fuse Output Ignition 3, Type III Fuse |
E5 |
BRN |
241 |
Fuse Output Ignition 3, Type III Fuse |
| E6 |
ORN |
1840 |
Fuse Output Battery, Type III Fuse
(w/Heated Seats) |
E6 |
ORN |
1840 |
Fuse Output Battery, Type III Fuse
(w/Heated Seats) |
| E7 |
-- |
-- |
Not Used |
E7 |
-- |
-- |
Not Used |
| E8 |
WHT |
121 |
Tachometer Signal |
E8 |
WHT |
121 |
Tachometer Signal |
C100 (Engine Harness Inline to I/P Harness, Luxury)
 |
| Connector Part
Information |
| 12146331 |
| 36F M/P 150, 180, 630 Series (LT GRY) |
|
Connector Part
Information |
| 12176348 |
| 36M M/P 150, 180, 630 Series (LT GRY) |
|
| Pin |
Wire Color |
Circuit No. |
Function |
Pin |
Wire Color |
Circuit No. |
Function |
| A1 |
RED |
542 |
Fuse Output Battery, Type II Fuse |
A1 |
RED |
542 |
Fuse Output Battery, Type II Fuse |
| A2 |
PNK |
1020 |
Ignition Feed - Off, Run, Crank |
A2 |
PNK |
1020 |
Ignition Feed - Off, Run, Crank |
| A3 |
ORN |
1440 |
Fuse Output Battery, Type III Fuse |
A3 |
ORN |
1440 |
Fuse Output Battery, Type III Fuse |
| A4 |
DK GRN |
29 |
Rear Window Washer Pump Motor Feed |
A4 |
DK GRN |
29 |
Rear Window Washer Pump Motor Feed |
| A6 |
RED |
42 |
Fuse Output Battery, Type II Fuse |
A6 |
RED |
42 |
Fuse Output Battery, Type II Fuse |
| A7 |
RED |
142 |
Fuse Output Battery, Type II Fuse |
A7 |
RED |
142 |
Fuse Output Battery, Type II Fuse |
| A8 |
RED |
242 |
Fuse Output Battery, Type II Fuse |
A8 |
RED |
242 |
Fuse Output Battery, Type II Fuse |
| B1 |
-- |
-- |
Not Used |
B1 |
-- |
-- |
Not Used |
| B2 |
WHT |
1294 |
EVO Solenoid Feed |
B2 |
WHT |
1294 |
EVO Solenoid Feed |
| B3 |
BRN |
1295 |
EVO Solenoid Output |
B3 |
BRN |
1295 |
EVO Solenoid Output |
| B5 |
DK GRN |
389 |
Vehicle Speed Signal |
B5 |
DK GRN |
389 |
Vehicle Speed Signal |
| B6 |
-- |
-- |
Not Used |
B6 |
-- |
-- |
Not Used |
| B7 |
PPL |
1807 |
Serial Data Class 2 |
B7 |
PPL |
1807 |
Serial Data Class 2 |
| B8 |
ORN |
1040 |
Fuse Output Battery, Type III Fuse |
B8 |
ORN |
1040 |
Fuse Output Battery, Type III Fuse |
| C1 |
BLK |
28 |
Horn Relay Output Coil |
C1 |
BLK |
28 |
Horn Relay Output Coil |
| C2 |
PPL |
30 |
Fuel Gauge Sensor Signal |
C2 |
PPL |
30 |
Fuel Gauge Sensor Signal |
| C3 |
BRN |
25 |
Charge Indicator Lamp Output |
C3 |
BRN |
25 |
Charge Indicator Lamp Output |
| C4 |
GRY/BLK |
1596 |
Water Heater Control Solenoid Output |
C4 |
GRY/BLK |
1596 |
Water Heater Control Solenoid Output |
| C5 |
-- |
-- |
Not Used |
C5 |
-- |
-- |
Not Used |
| C6 |
TAN/WHT |
33 |
Brake Warning Indicator Lamp Output |
C6 |
TAN/WHT |
33 |
Brake Warning Indicator Lamp Output |
| C7 |
PNK |
139 |
Fuse Output Ignition I, Type III Fuse |
C7 |
PNK |
139 |
Fuse Output Ignition I, Type III Fuse |
| C8 |
LT GRN |
867 |
ABS Failure Indicator Lamp Output |
C9 |
LT GRN |
867 |
ABS Failure Indicator Lamp Output |
| D1 |
-- |
-- |
Not Used |
D1 |
-- |
-- |
Not Used |
| D2 |
LT BLU/BLK |
396 |
Cruise Control Signal, Engaged |
D2 |
LT BLU/BLK |
396 |
Cruise Control Signal, Engaged |
| D3 |
LT GRN |
24 |
Backup Lamp Feed |
D3 |
LT GRN |
24 |
Backup Lamp Feed |
| D4 |
DK GRN/WHT |
817 |
Vehicle Speed Signal, 4000 Pulses Per Mile |
D4 |
DK GRN/WHT |
817 |
Vehicle Speed Signal, 4000 Pulses Per Mile |
| D6 |
-- |
-- |
Not Used |
D6 |
-- |
-- |
Not Used |
| D7 |
LT GRN |
66 |
Air Conditioning Switch Output |
D7 |
LT GRN |
66 |
Air Conditioning Switch Output |
| D8 |
BRN |
441 |
Fuse Output Ignition 3, Type III Fuse |
D8 |
BRN |
441 |
Fuse Output Ignition 3, Type III Fuse |
| E1 |
PPL |
806 |
Fuse Output Crank, Type III Fuse (Automatic
Transmission) |
E1 |
PPL |
806 |
Fuse Output Crank, Type III Fuse (Automatic
Transmission) |
| E2 |
PNK |
3 |
Ignition Switch Output, Ignition 1 |
E2 |
PNK |
3 |
Ignition Switch Output, Ignition 1 |
| E3 |
RED |
342 |
Fuse Output Battery, Type II Fuse |
E3 |
RED |
342 |
Fuse Output Battery, Type II Fuse |
| E5 |
BRN |
241 |
Fuse Output Ignition 3, Type III Fuse |
E5 |
BRN |
241 |
Fuse Output Ignition 3, Type III Fuse |
| E6 |
ORN |
1840 |
Water Heater Control Solenoid Output |
E6 |
ORN |
1840 |
Water Heater Control Solenoid Output |
| E7 |
ORN |
1940 |
Fuse Output Battery, Type III Fuse |
E7 |
ORN |
1940 |
Fuse Output Battery, Type III Fuse |
| E8 |
WHT |
121 |
Tachometer Signal |
E8 |
WHT |
121 |
Tachometer Signal |
C103 (Engine Harness Inline to Tail Lamp Harness)
 |
| Connector Part
Information |
| 12129565 |
| 4 Way F Metri-Pack 280 Series (GRY) |
|
Connector Part
Information |
| 12129566 |
| 4 Way M Metri-Pack 280 Series (GRY) |
|
| Pin |
Wire Color |
Circuit No. |
Function |
Pin |
Wire Color |
Circuit No. |
Function |
| A |
LT GRN |
24 |
Back Up Lamp Feed |
A |
LT GRN |
24 |
Back Up Lamp Feed |
| B |
GRY |
120 |
Fuel Pump Motor Feed |
B |
GRY |
120 |
Fuel Pump Motor Feed |
| C |
PNK |
639 |
Fuse Output - Ignition I Type III Fuse
(Diesel) |
C |
PNK |
639 |
Fuse Output - Ignition I Type III Fuse
(Diesel) |
| D |
BLK/WHT |
451 |
Engine Control Module Ground (Diesel) |
D |
BLK/WHT |
451 |
Engine Control Module Ground (Diesel) |
C107 (Engine Harness Inline to Oxy Sensor Jumper)
 |
| Connector Part
Information |
| 12052848 |
| 6 F Metri-Pack 150 Series (BLK) |
|
Connector Part
Information |
| 1214107 |
| 6 M Metri-Pack 150 Series (BLK) |
|
| Pin |
Wire Color |
Circuit No. |
Function |
Pin |
Wire Color |
Circuit No. |
Function |
| A |
TAN/WHT |
1669 |
Oxygen Sensor Return Left Rear of Catalytic
Converter |
A |
TAN/WHT |
1669 |
Oxygen Sensor Return Left Rear of Catalytic
Converter |
| B |
PPL/WHT |
1668 |
Oxygen Sensor Signal Left Rear of Catalytic
Converter |
B |
PPL/WHT |
1668 |
Oxygen Sensor Signal Left Rear of Catalytic
Converter |
| C |
BLK |
150 |
Ground |
C |
BLK |
150 |
Ground |
| D |
PNK |
539 |
Fuse Output - Ignition 1 -Type III Fuse |
D |
PNK |
539 |
Fuse Output - Ignition 1 -Type III Fuse |
| E |
TAN |
1671 |
Oxygen Sensor Return Right Rear of
Catalytic Converter |
E |
TAN |
1671 |
Oxygen Sensor Return Right Rear of
Catalytic Converter |
| F |
PPL |
1670 |
Oxygen Sensor Signal Right Rear of
Catalytic Converter |
F |
PPL |
1670 |
Oxygen Sensor Signal Right Rear of
Catalytic Converter |
C130 (Engine Harness Inline to Tail and Stop Lamp
Ext. Harness, Gas)
 |
| Connector Part
Information |
| 12160482 |
| 4F Metri-Pack 150 Series (BLK) |
|
Connector Part
Information |
| 12160825 |
| 4M Metri-Pack 150 Series (BLK) |
|
| Pin |
Wire Color |
Circuit No. |
Function |
Pin |
Wire Color |
Circuit No. |
Function |
| A |
GRY |
474 |
Reference Voltage Feeds Volt Reference |
A |
GRY |
474 |
Reference Voltage Feeds Volt Reference |
| B |
DK GRN |
890 |
Fuel Tank Pressure Sensor Signal |
B |
DK GRN |
890 |
Fuel Tank Pressure Sensor Signal |
| C |
BLK |
470 |
Sensor Return |
C |
BLK |
470 |
Sensor Return |
| D |
PPL/WHT |
1589 |
Fuel Gauge Sensor Signal |
D |
PPL/WHT |
1589 |
Fuel Gauge Sensor Signal |
C200 (IP Harness Inline to Engine Harness, Gas)
 |
| Connector Part
Information |
| 12129430 |
| 16F Metri-Pack 280 Series ACT (WHT) |
|
Connector Part
Information |
| 12129429 |
| 16M Metri-Pack 280 Series ACT (WHT) |
|
| Pin |
Wire Color |
Circuit No. |
Function |
Pin |
Wire Color |
Circuit No. |
Function |
| A |
YEL |
1737 |
Transmission Mounted Neutral Safety Switch
Output, Park, Neutral |
A |
YEL |
1737 |
Transmission Mounted Neutral Safety Switch
Output, Park, Neutral |
| B - C |
-- |
-- |
Not Used |
B - C |
-- |
-- |
Not Used |
| D |
LT GRN |
275 |
Transmission Mounted Neutral Safety Switch
Output-Park |
D |
LT GRN |
275 |
Transmission Mounted Neutral Safety Switch
Output-Park |
| E |
PPL |
420 |
Brake Pedal Switch Output, Torque Converter
Clutch |
E |
PPL |
420 |
Brake Pedal Switch Output, Torque Converter
Clutch |
| F |
BLK/WHT |
451 |
Engine Control Module Ground |
F |
BLK/WHT |
451 |
Engine Control Module Ground |
| G |
BLK/WHT |
771 |
Transmission Position Switch Signal, Bit 1
(Automatic Transmission) |
G |
BLK/WHT |
771 |
Transmission Position Switch Signal, Bit 1
(Automatic Transmission) |
| H |
YEL |
772 |
Transmission Position Switch Signal, Bit 2
(Automatic Transmission) |
H |
YEL |
772 |
Transmission Position Switch Signal, Bit 2
(Automatic Transmission) |
| J |
GRY |
773 |
Transmission Position Switch Signal, Bit 3
(Automatic Transmission) |
J |
GRY |
773 |
Transmission Position Switch Signal, Bit 3
(Automatic Transmission) |
| K |
WHT |
776 |
Transmission Position Switch Signal, Parity
Bit (Automatic Transmission) |
K |
WHT |
776 |
Transmission Position Switch Signal, Parity
Bit (Automatic Transmission) |
| L |
DK GRN |
35 |
Coolant Temperature Indicator Lamp Output |
L |
DK GRN |
35 |
Coolant Temperature Indicator Lamp Output |
| M |
TAN |
31 |
Oil Pressure Indicator Lamp Output |
M |
TAN |
31 |
Oil Pressure Indicator Lamp Output |
| N |
BRN/WHT |
419 |
Check Engine Indicator Lamp Output |
N |
BRN/WHT |
419 |
Check Engine Indicator Lamp Output |
| P |
DK GRN |
1614 |
Air Inlet Valve Motor Feed |
P |
DK GRN |
1614 |
Air Inlet Valve Motor Feed |
| R - S |
-- |
-- |
Not Used |
R -S |
-- |
-- |
Not Used |
|
