Engine Controls Schematics Base and Luxury

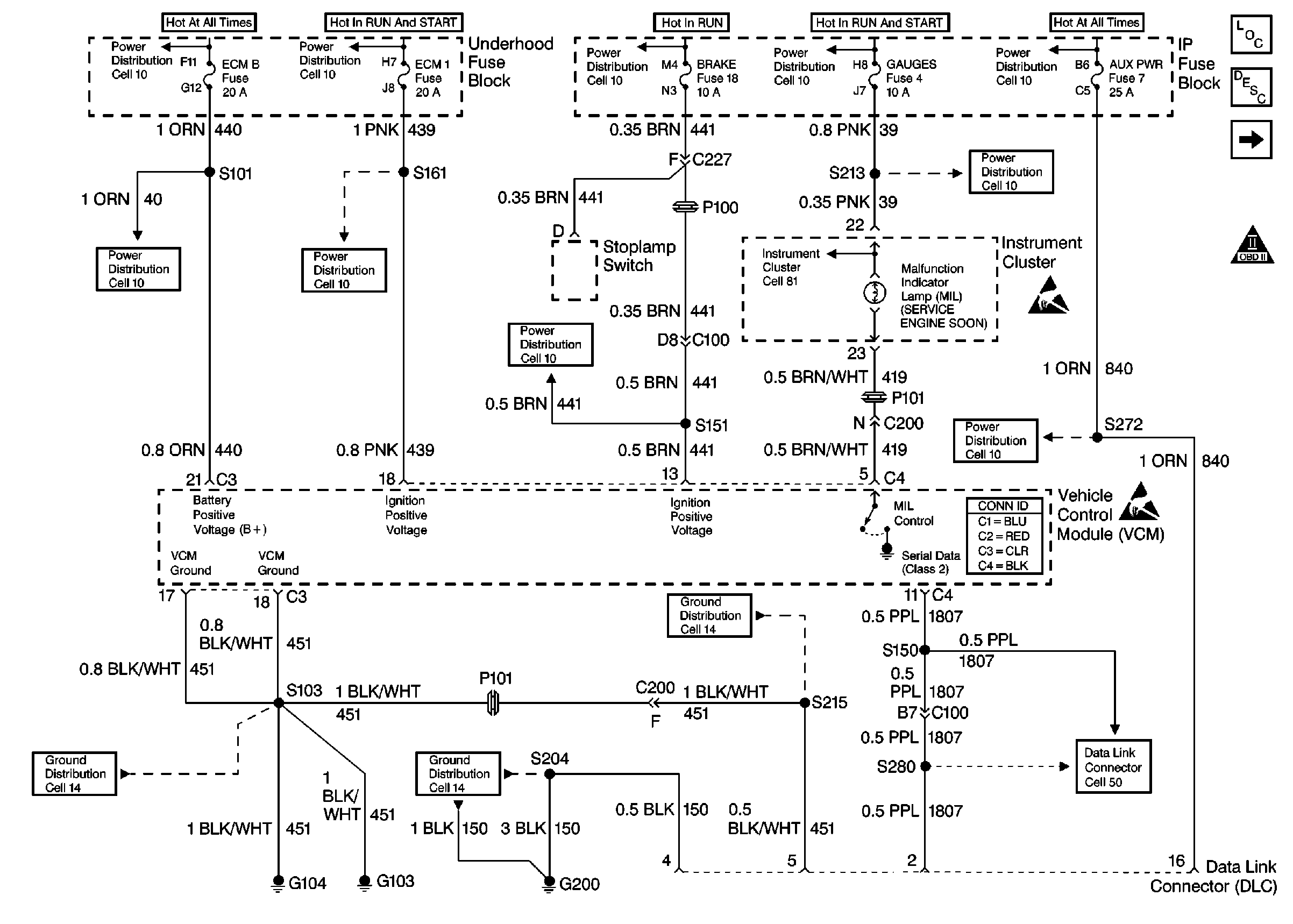

Figure 1:	Power, Ground, and DLC
Figure 2:	Ignition Controls

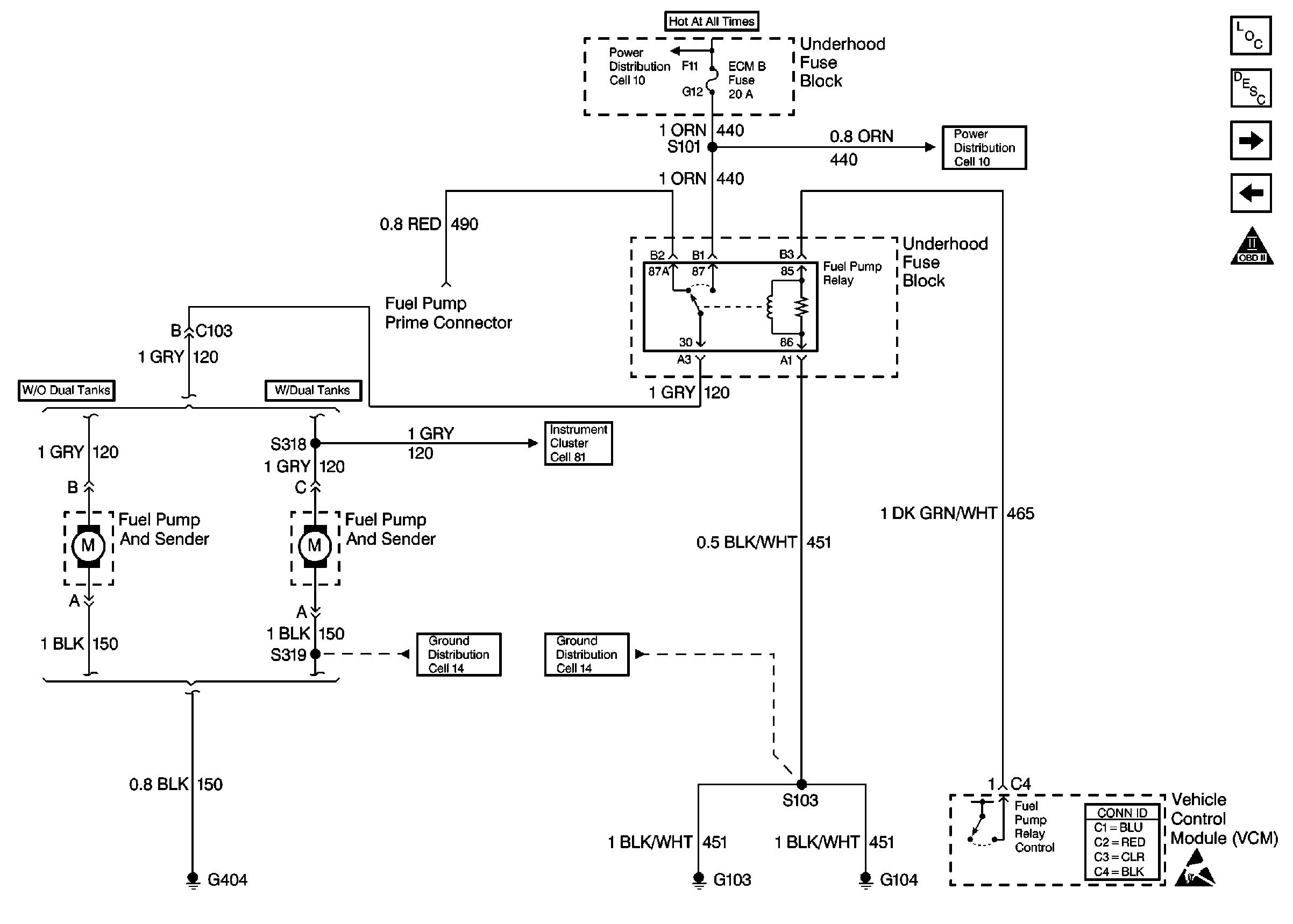

Figure 3:	Fuel Controls

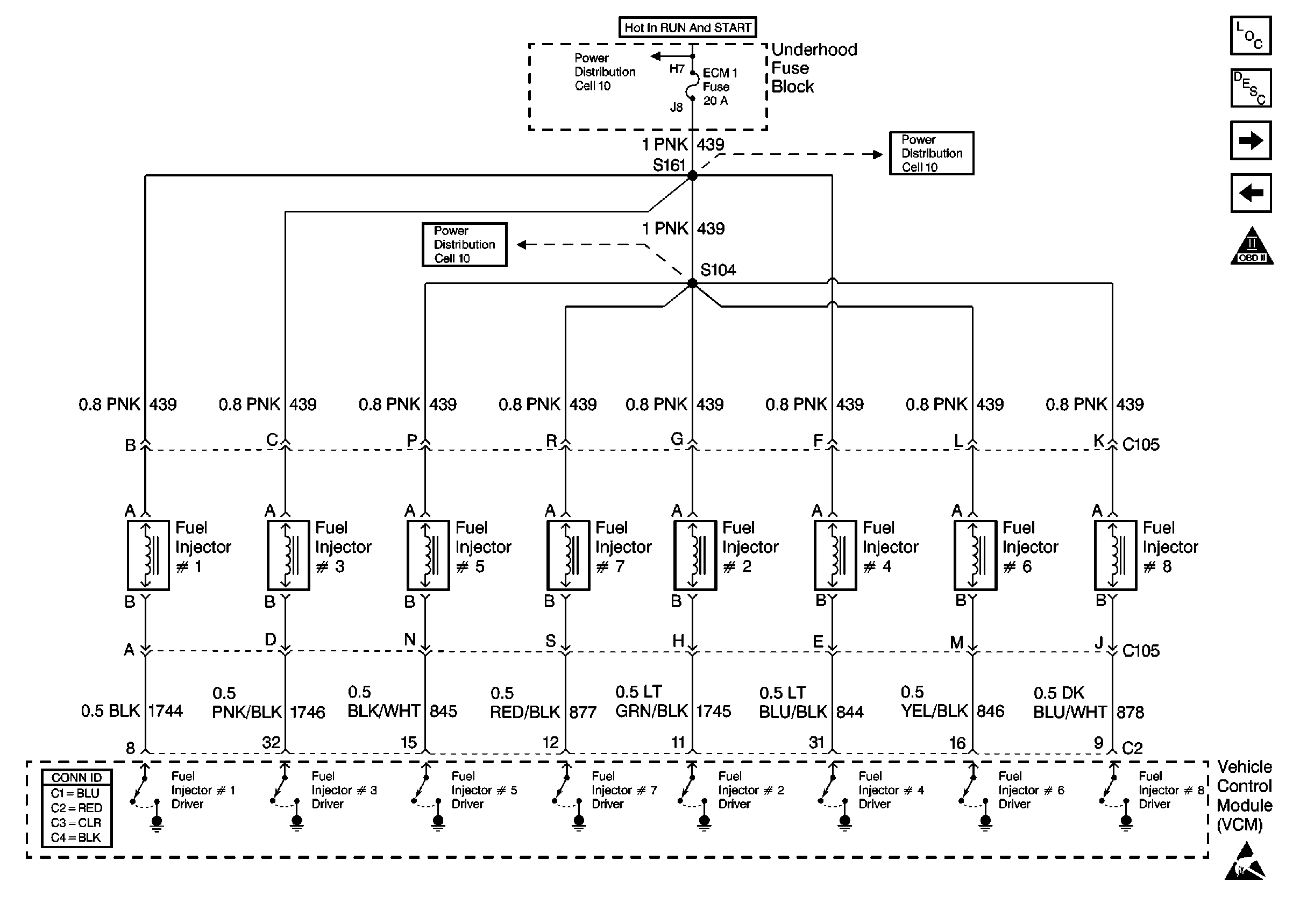

Figure 4:	Fuel Injector Controls

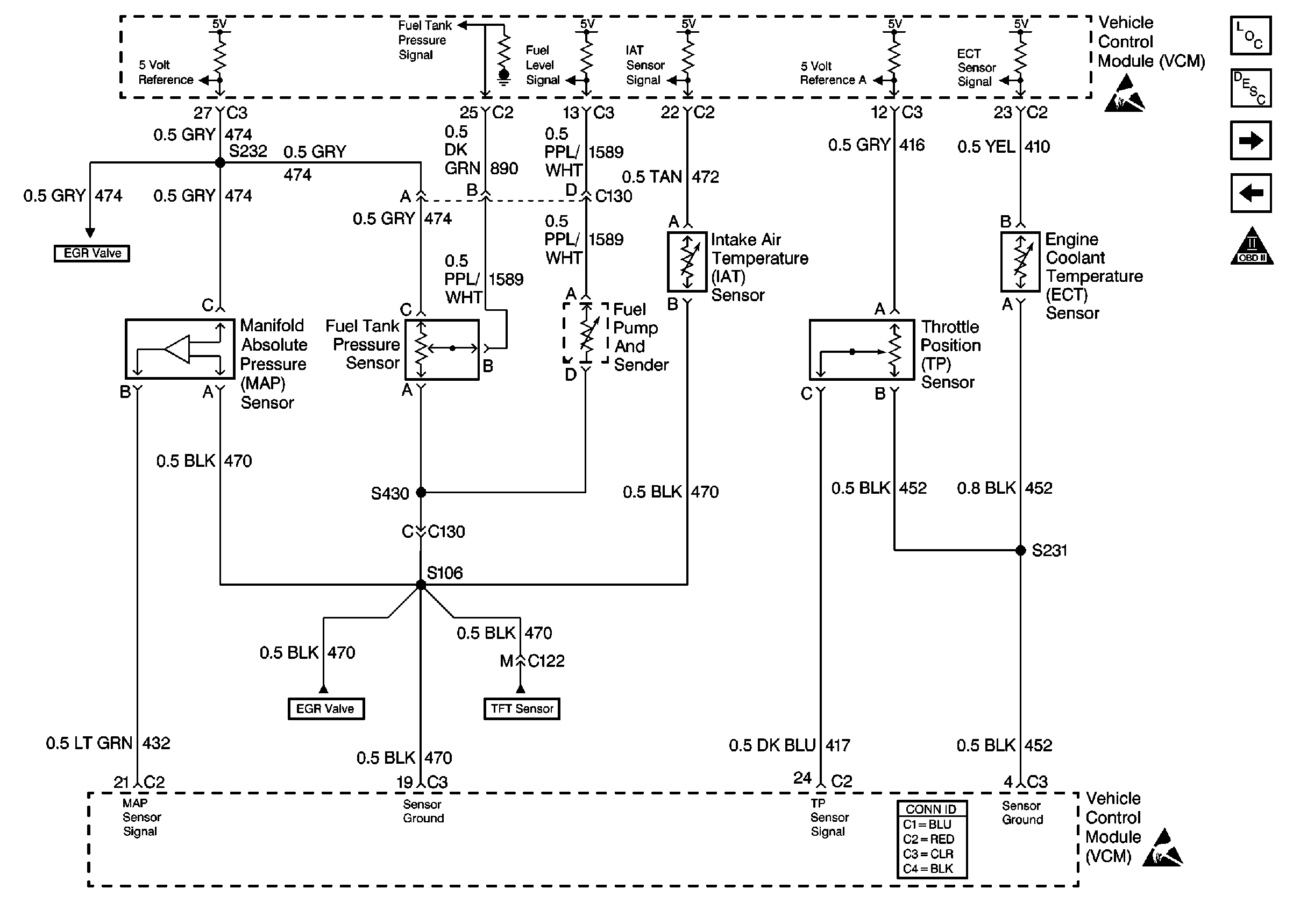

Figure 5:	Engine Sensors

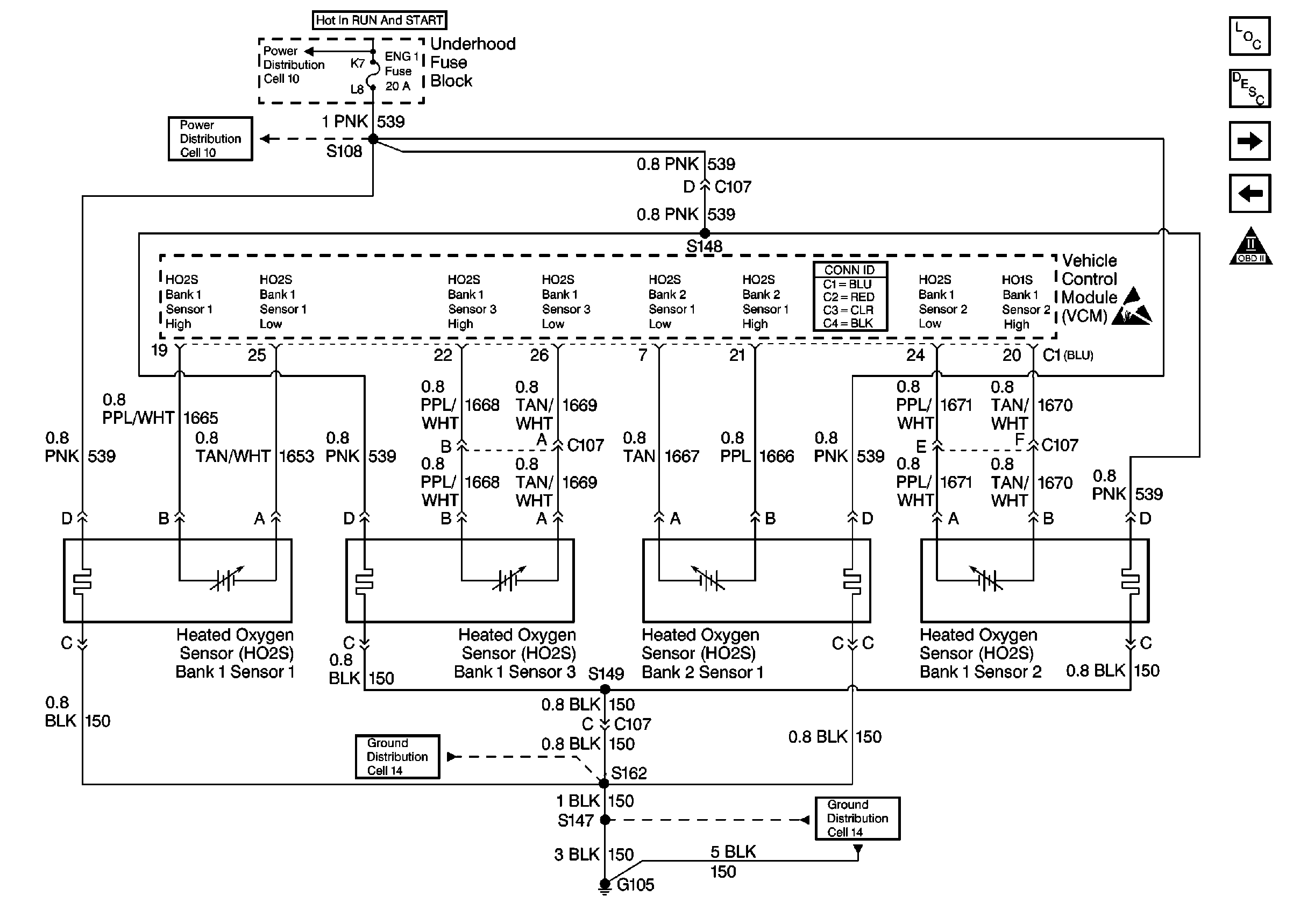

Figure 6:	Heated Oxygen Sensors

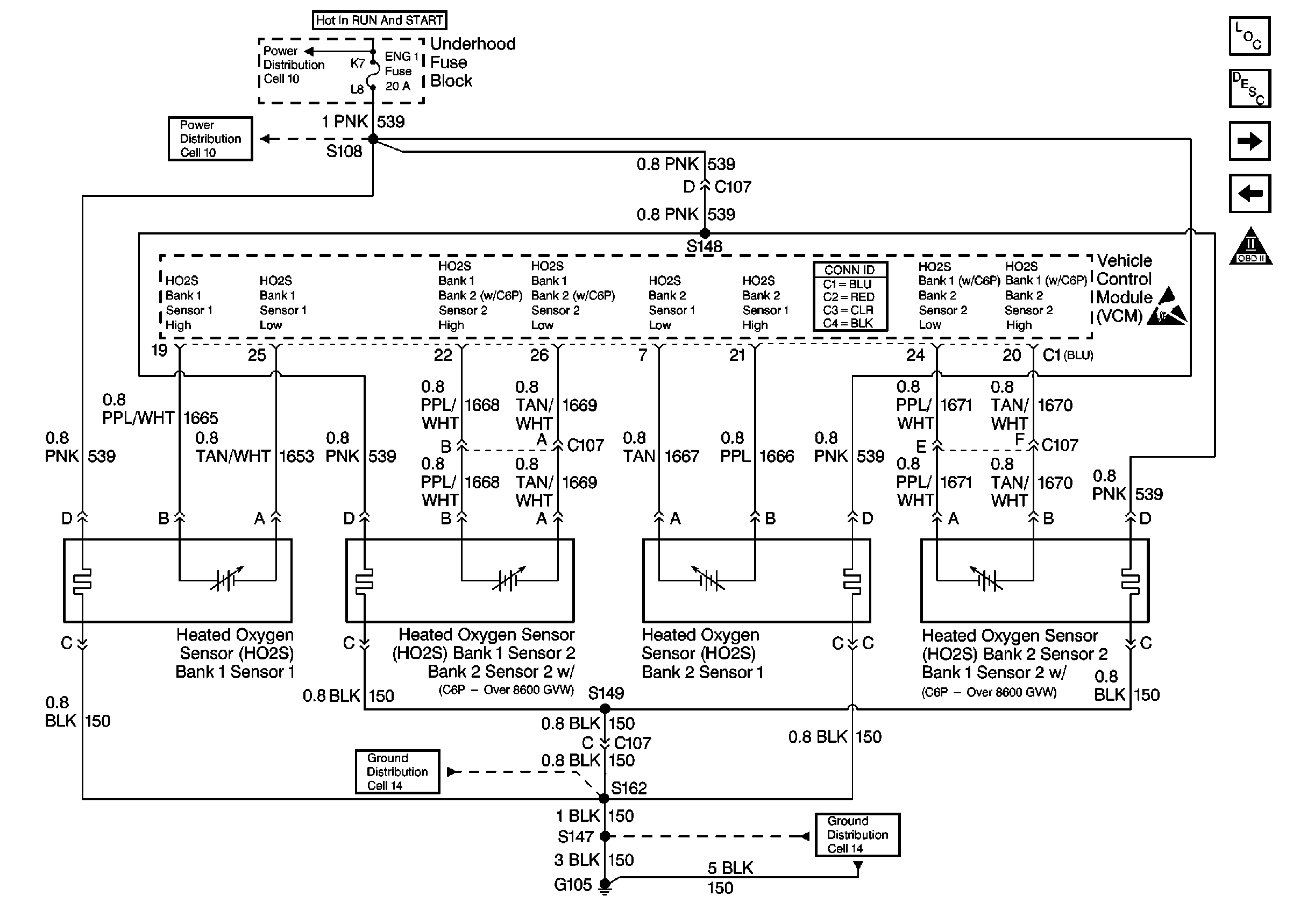

Figure 7:	HO2S Sensors 5.7L

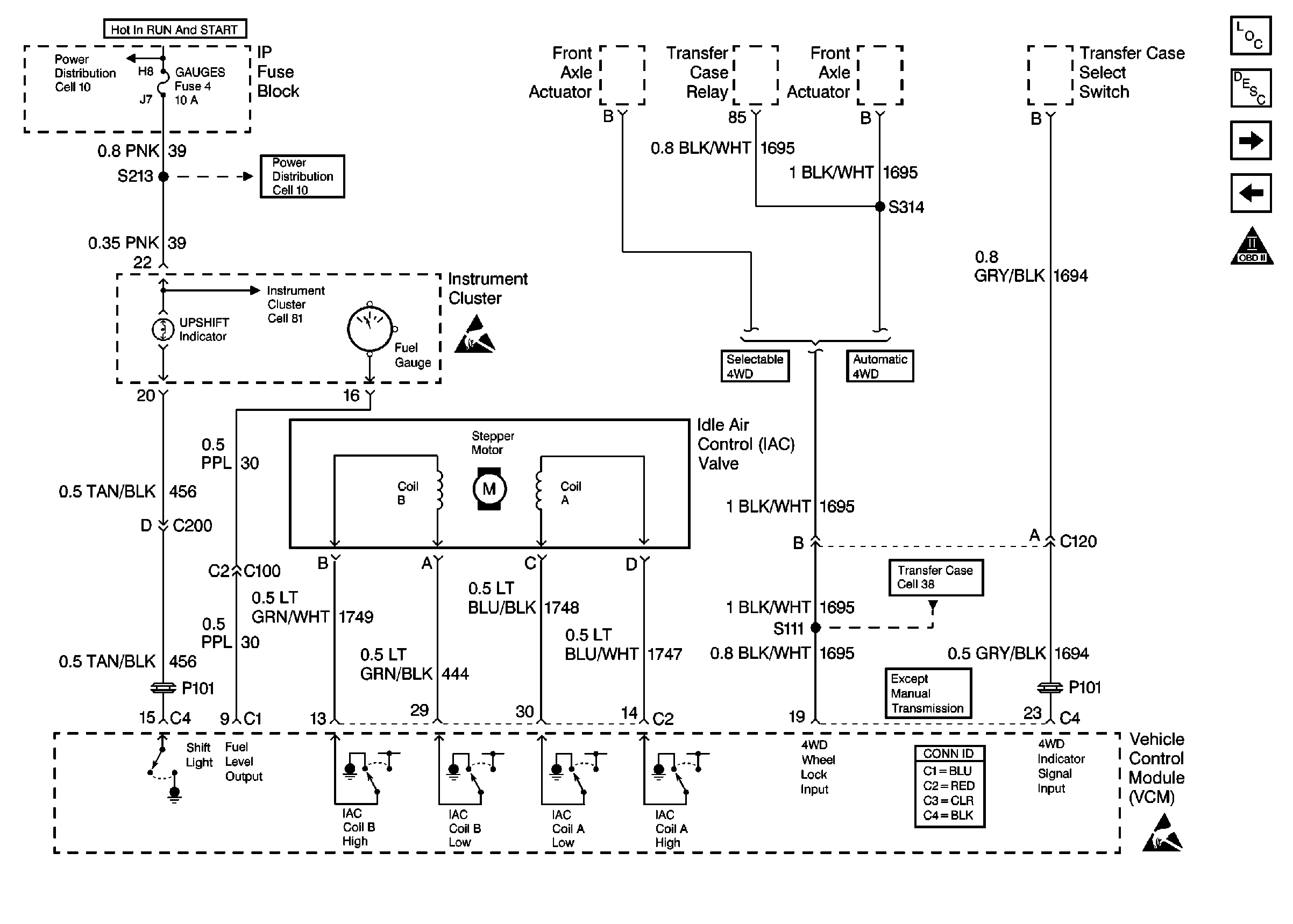

Figure 8:	4WD, IAC, and Upshift Controls

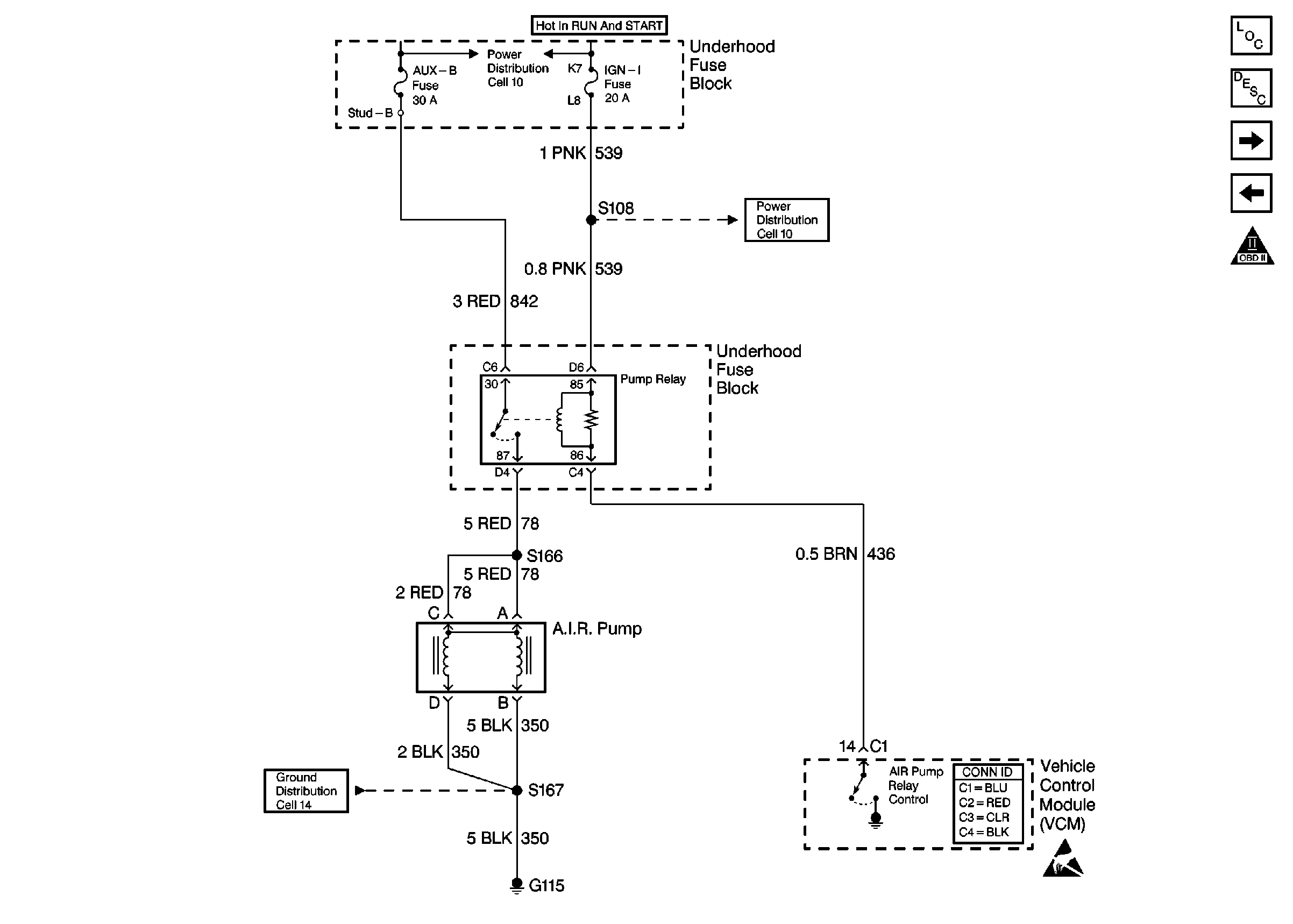

Figure 9:	Air Pump Controls

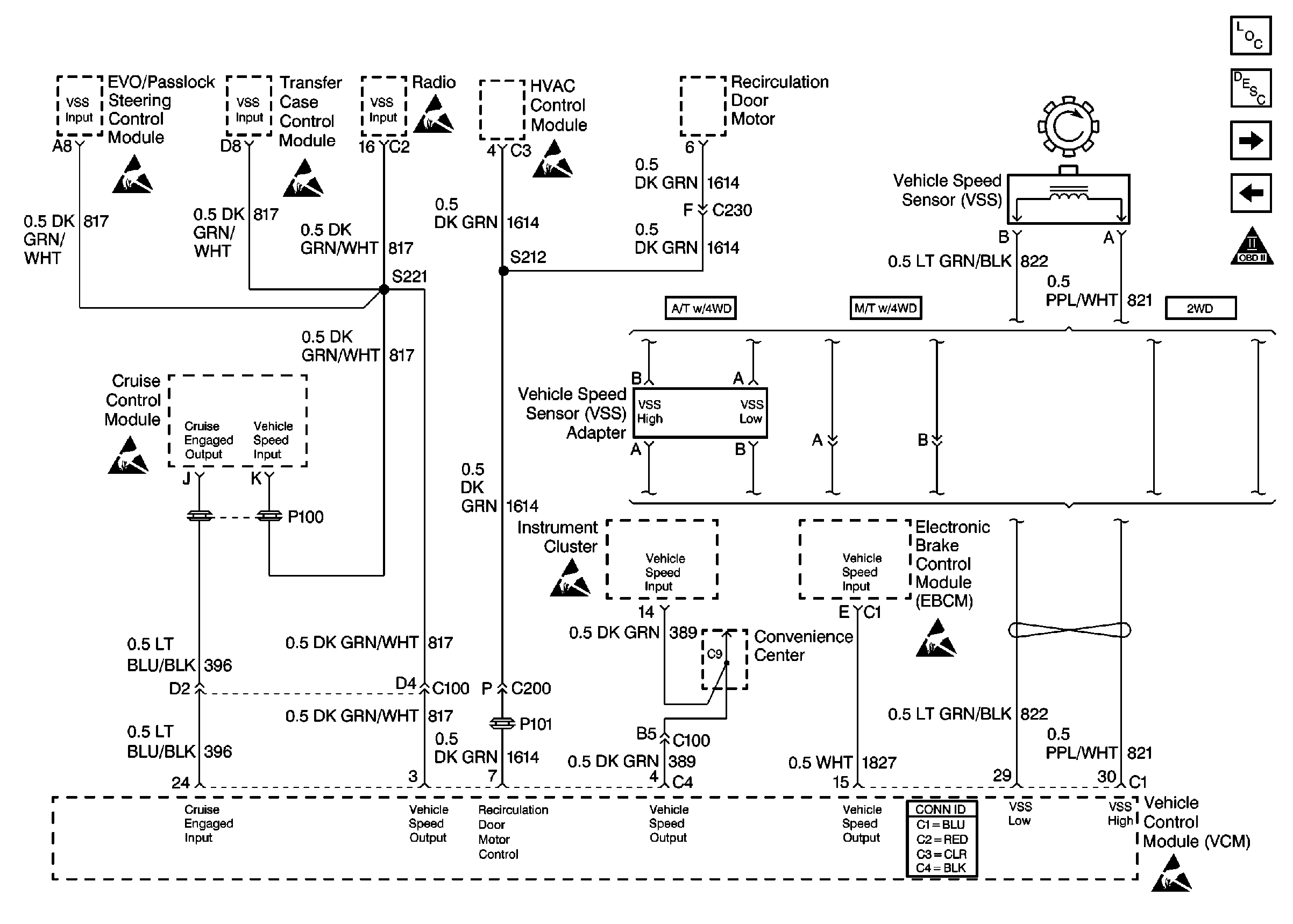

Figure 10:	VSS and Cruise Controls

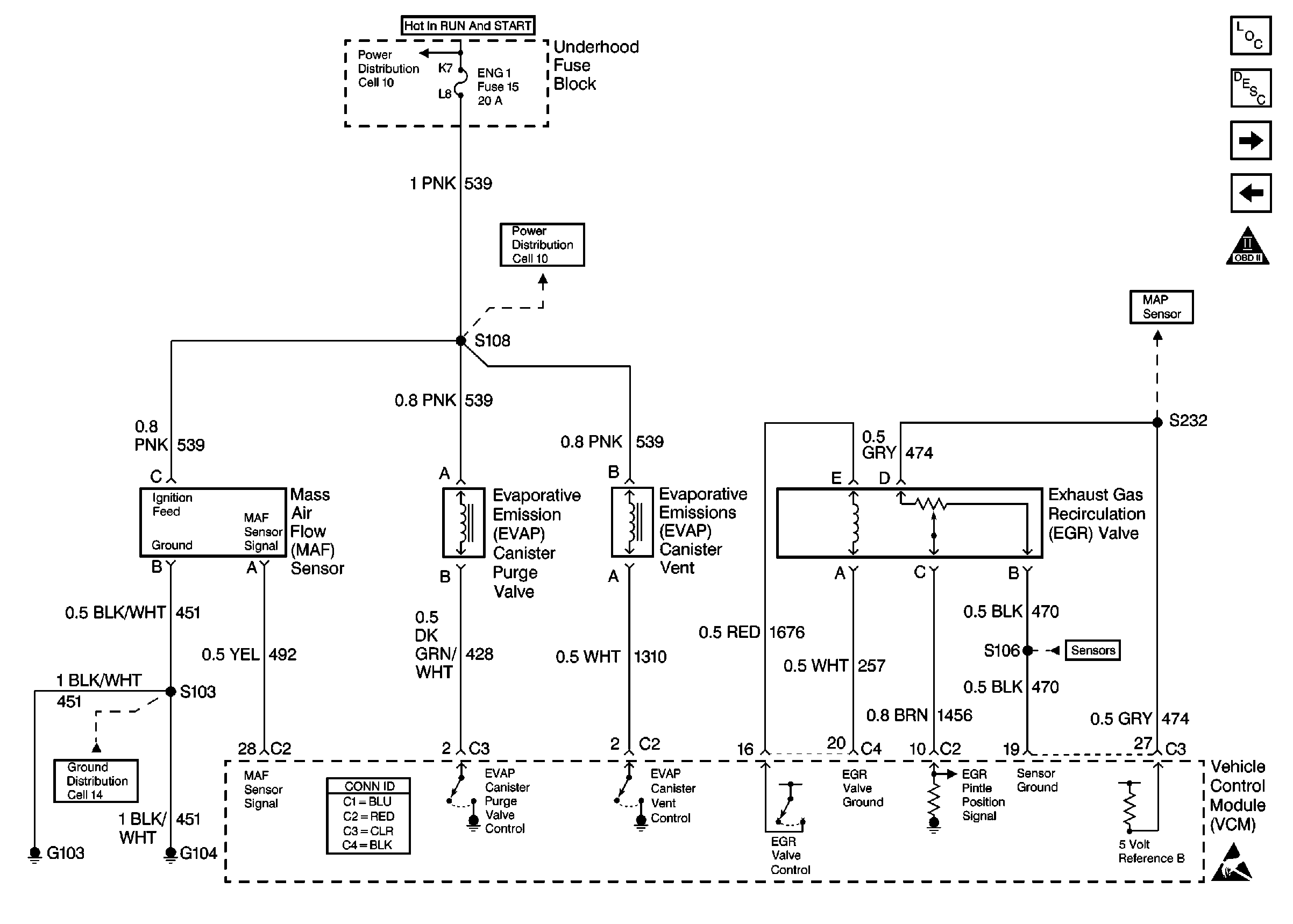

Figure 11:	Evaporative and EGR Controls

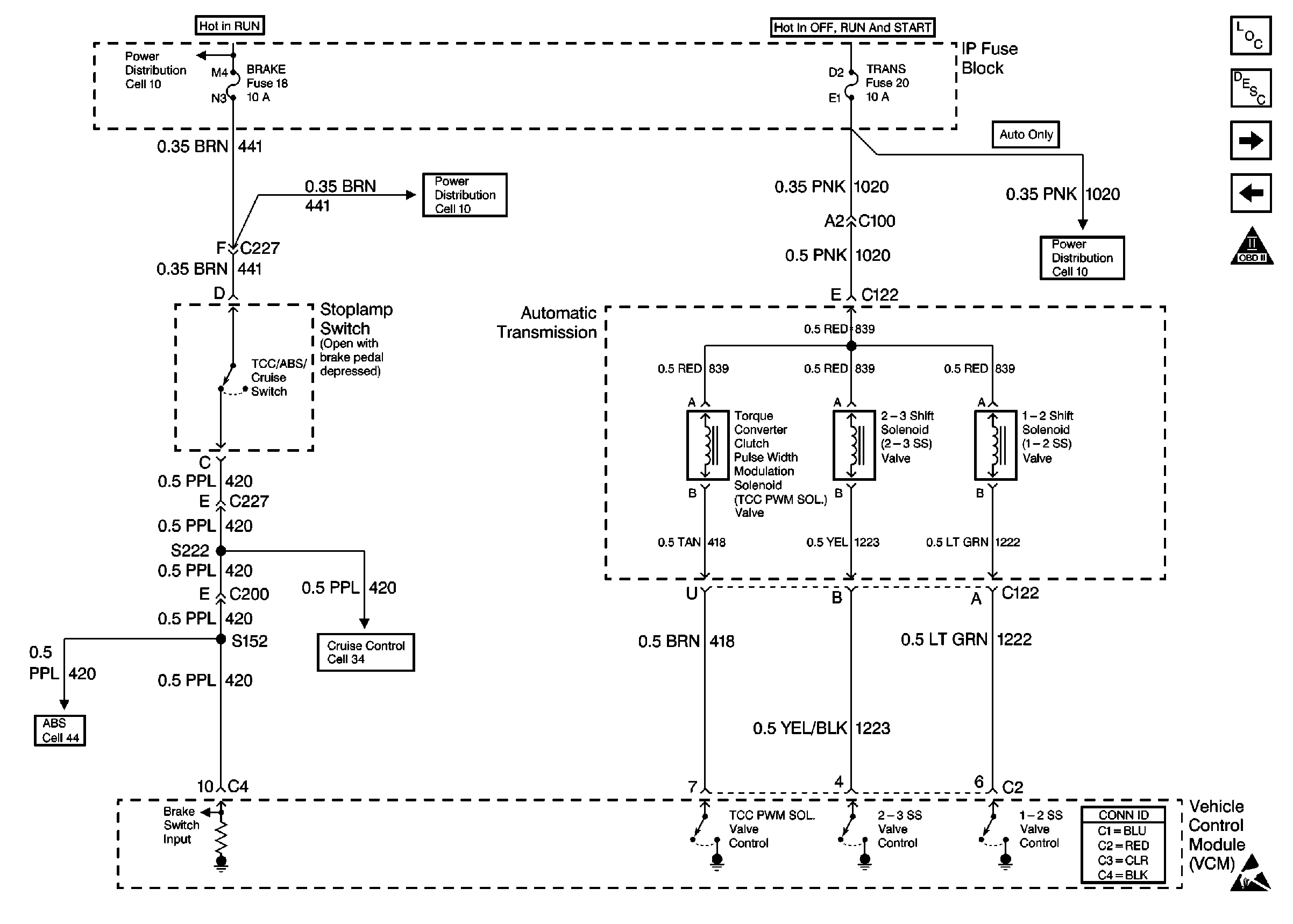

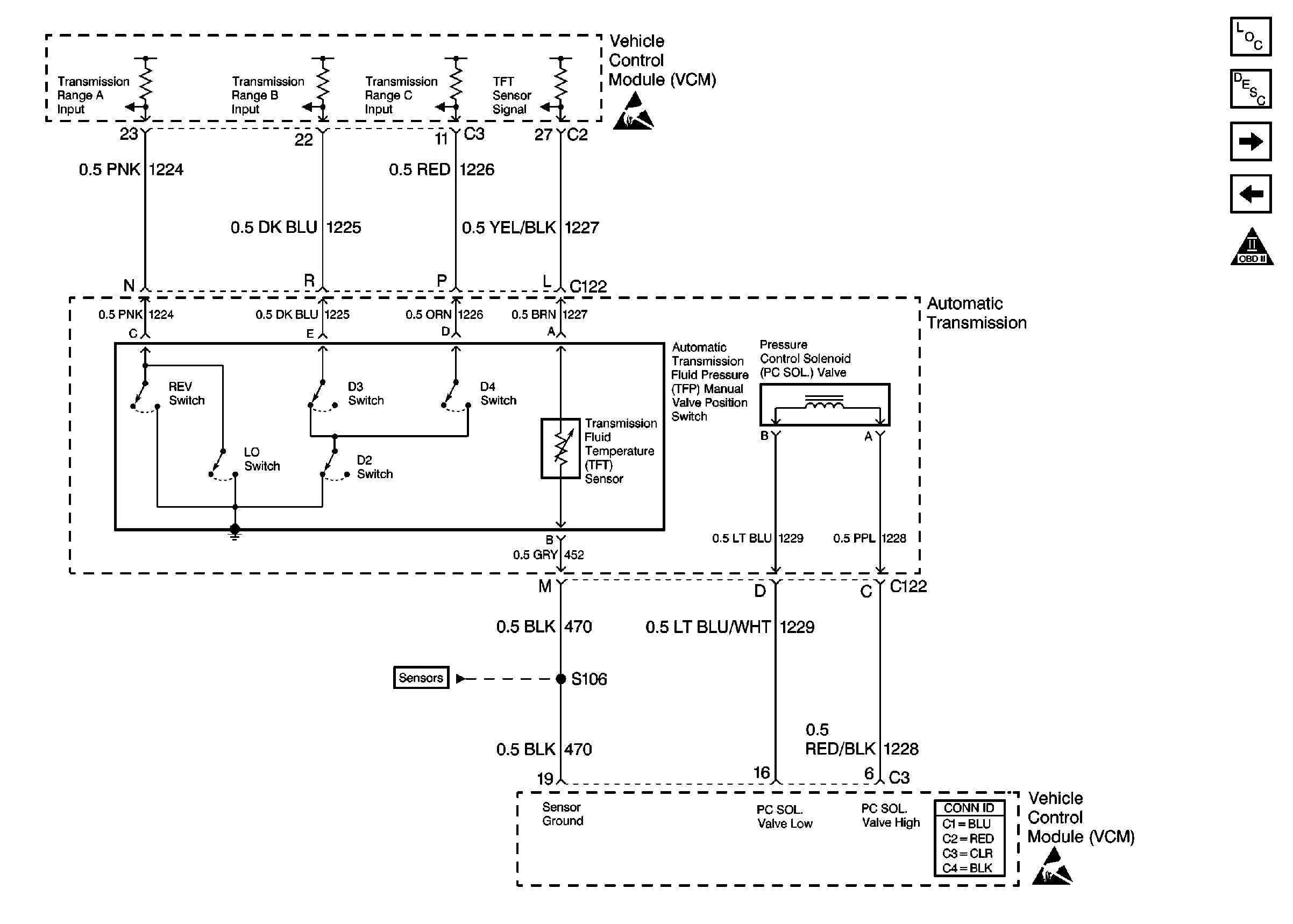

Figure 12:	Shift Solenoids (4l 60E)

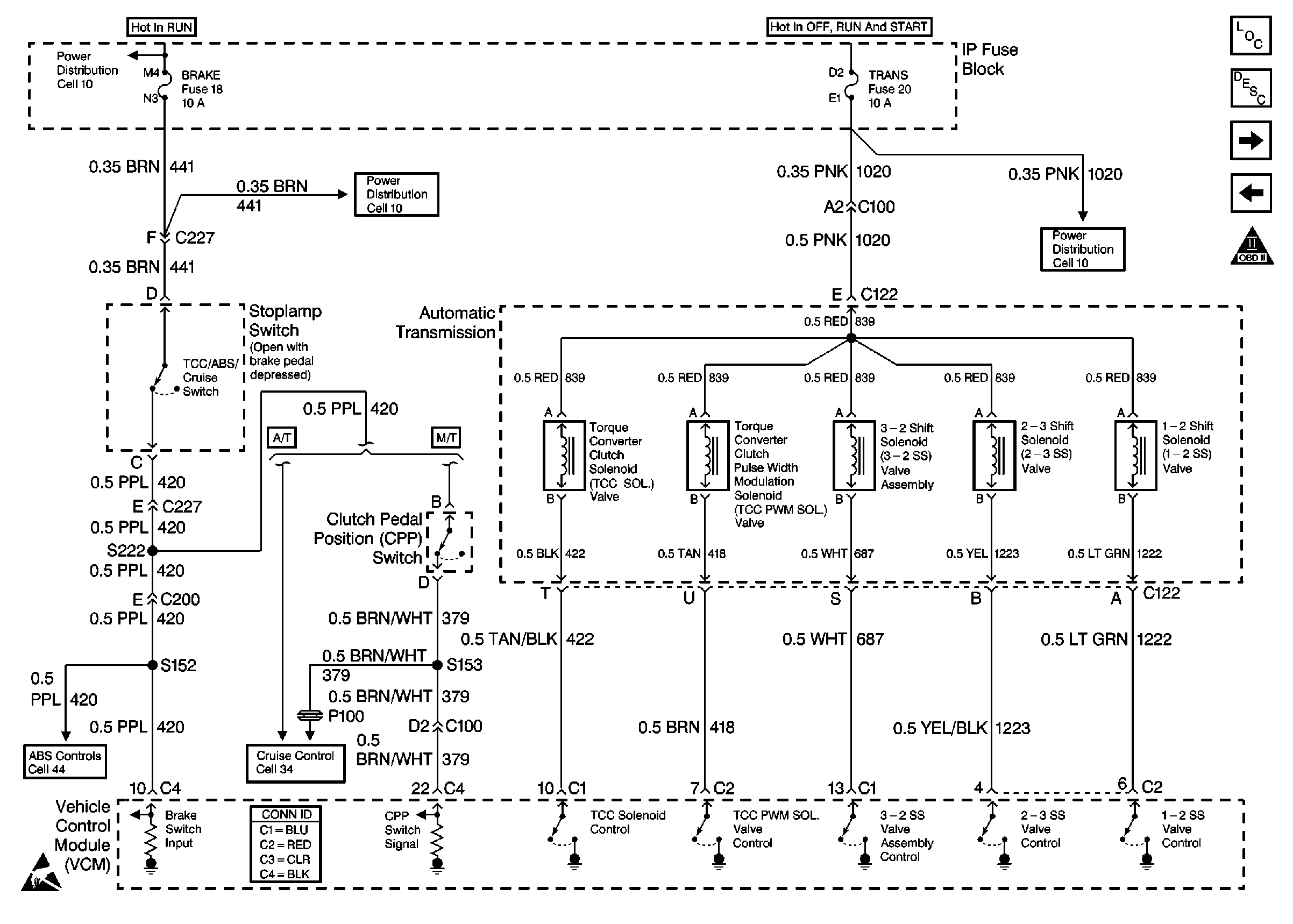

Figure 13:	Shift Solenoids
Figure 14:	Transmission Controls (4L 60E)
Figure 15:	Transmission Controls (4L 80E)
Figure 16:	A/C Controls
