Index of /pictures/03to07schematics/2006/

NameLast ModifiedSize
UpParent Directory
Directory_vti_cnf2020-08-06 14:43-
[IMG]2005 Class 2 Data Bus Complete.gif2020-08-06 14:42 208k

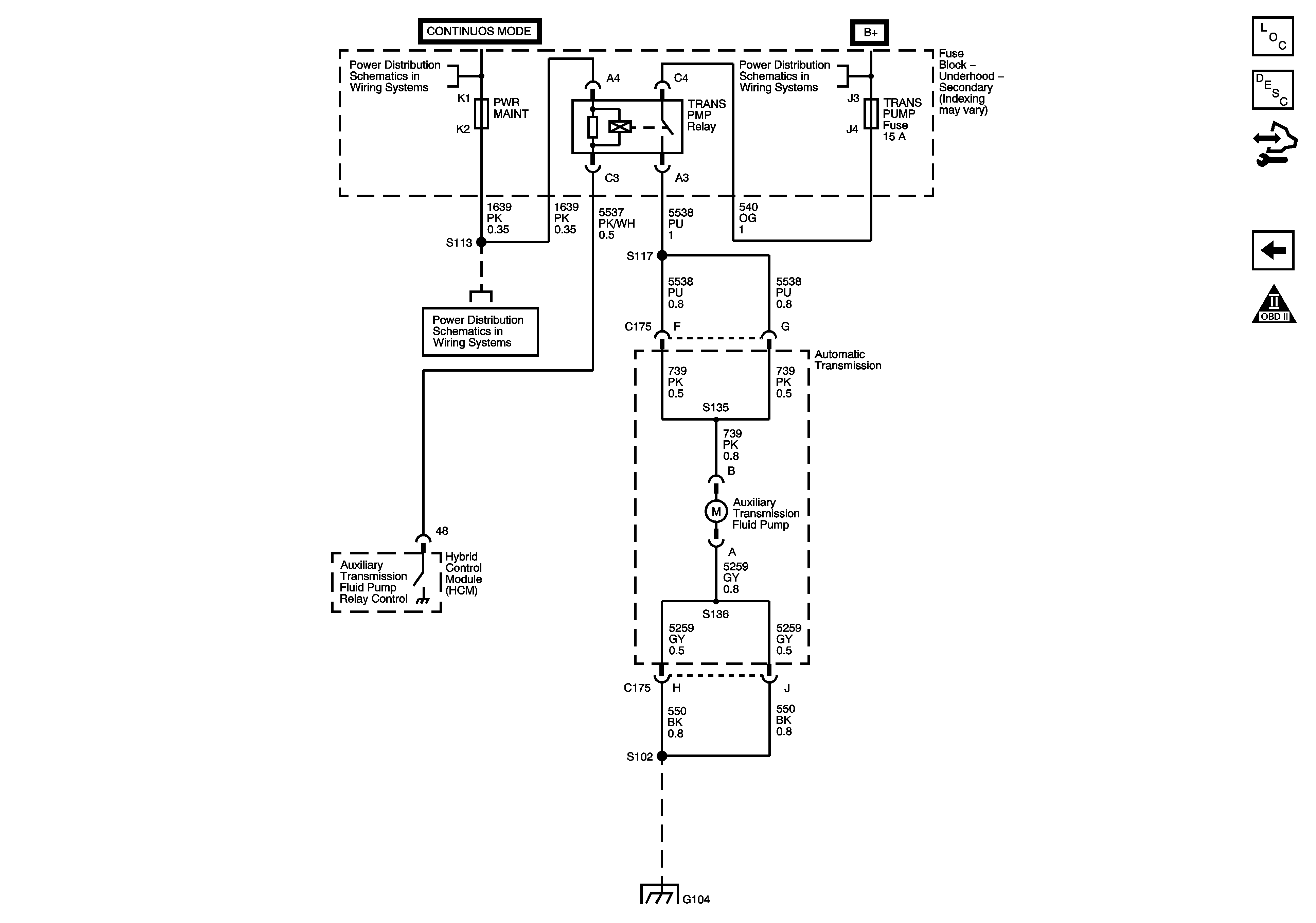

[IMG]4L60E Auxiliary Pump COntorls with HP2.gif2020-08-06 14:42 73k

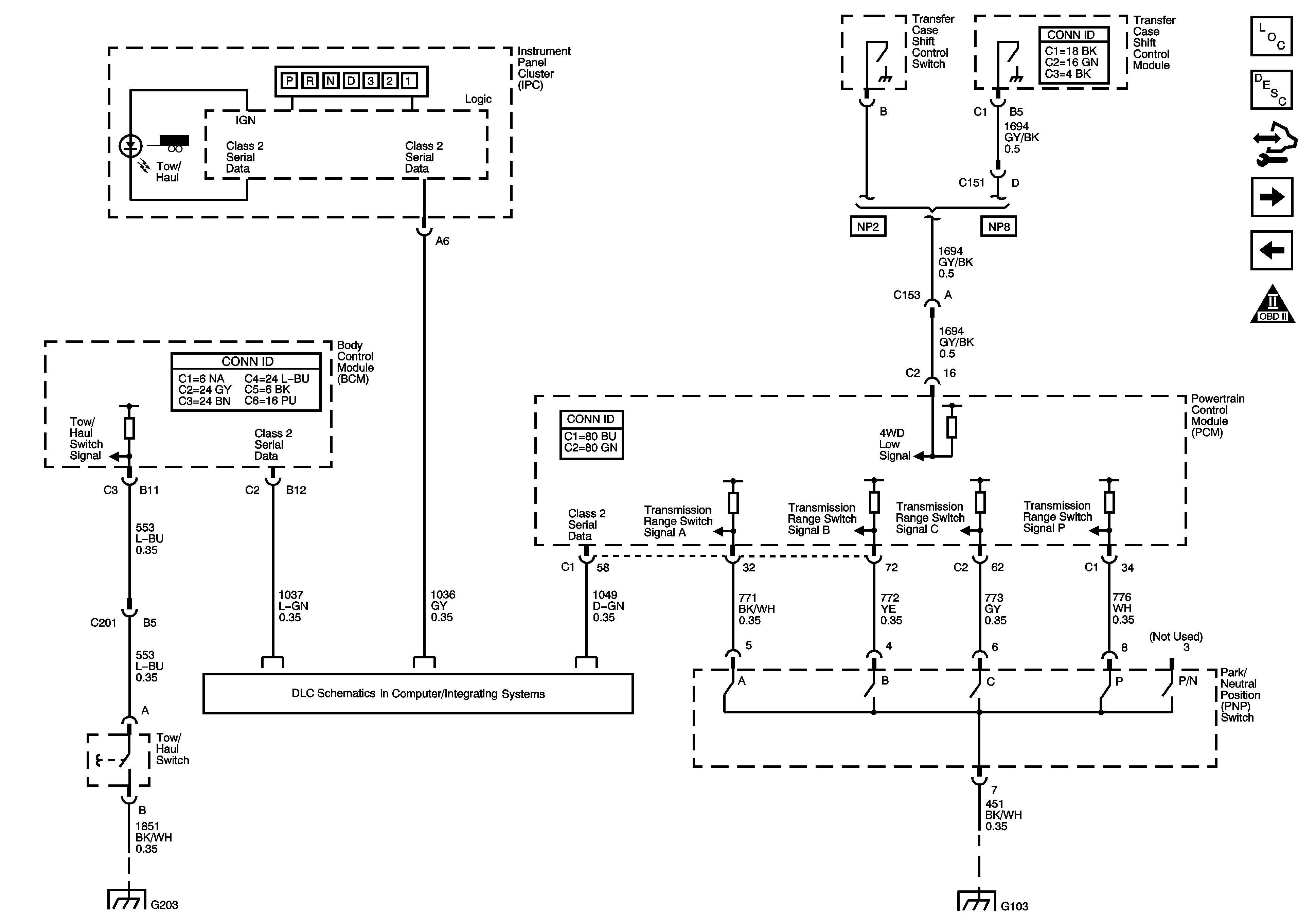

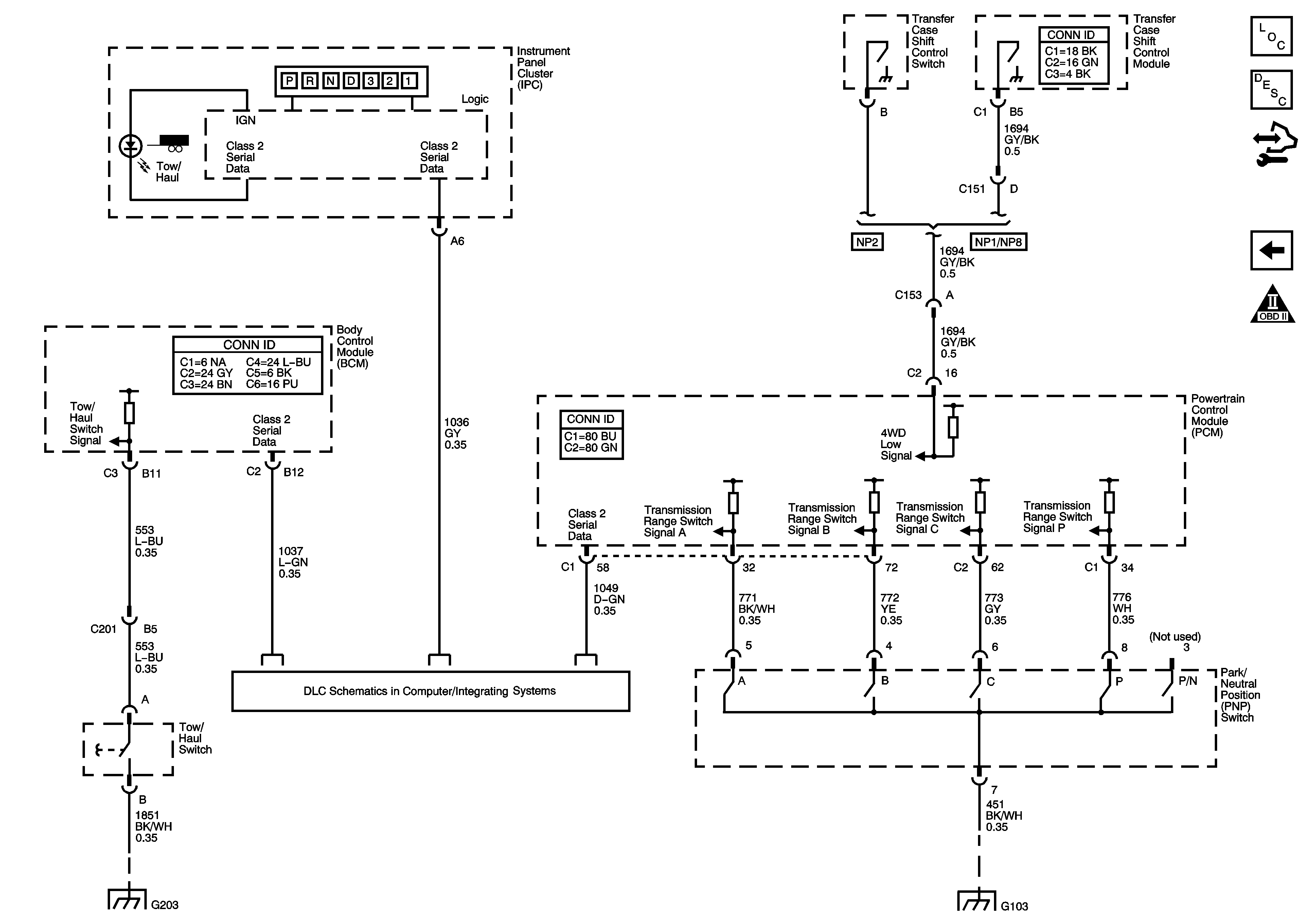

[IMG]4L60E PNP Switch, 4WD Signal, Tow-Haul, Serial Data, and Indicator.gif2020-08-06 14:42 104k

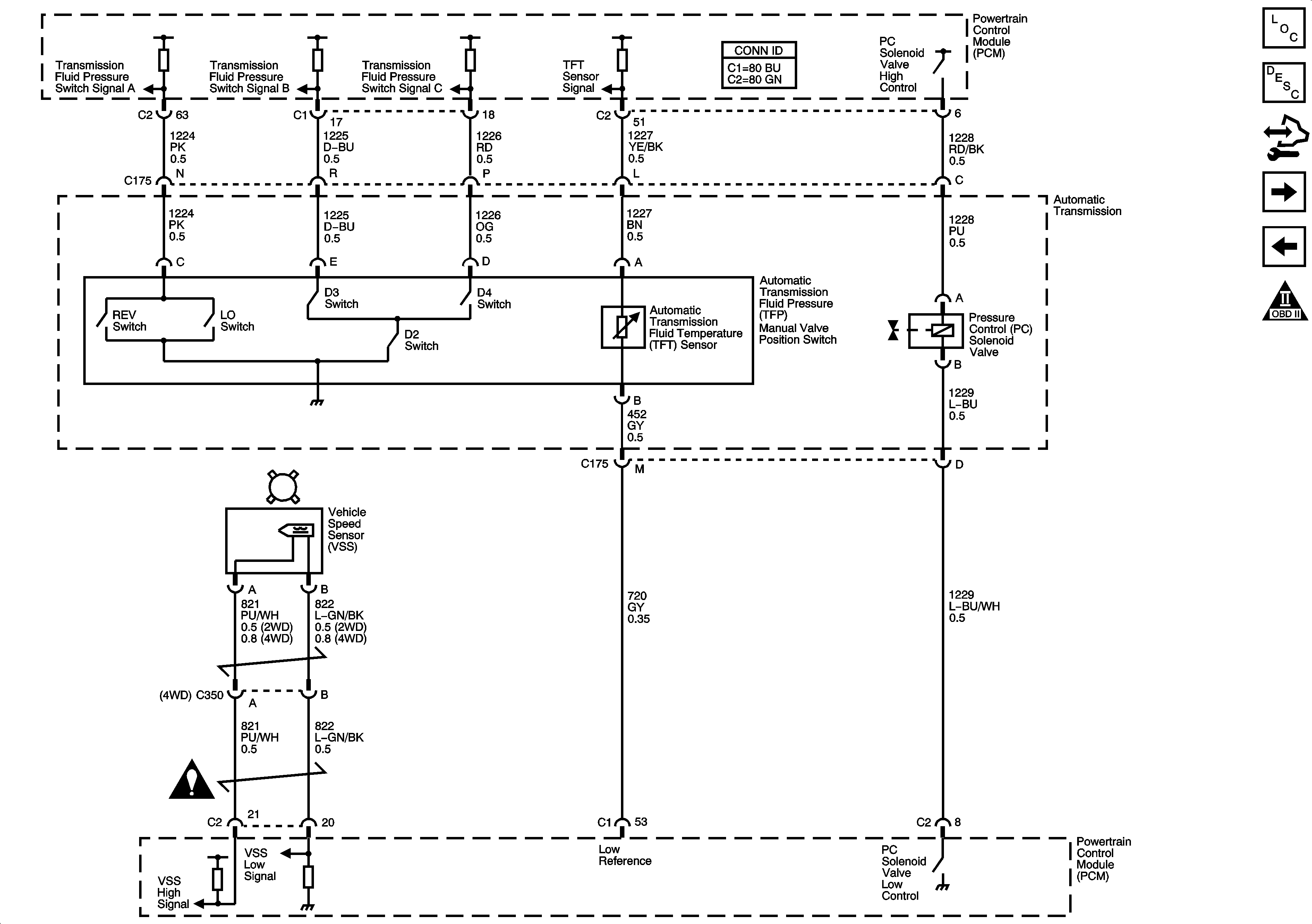

[IMG]4L60E Pressure Controls, Temp, and VSS.gif2020-08-06 14:42 100k

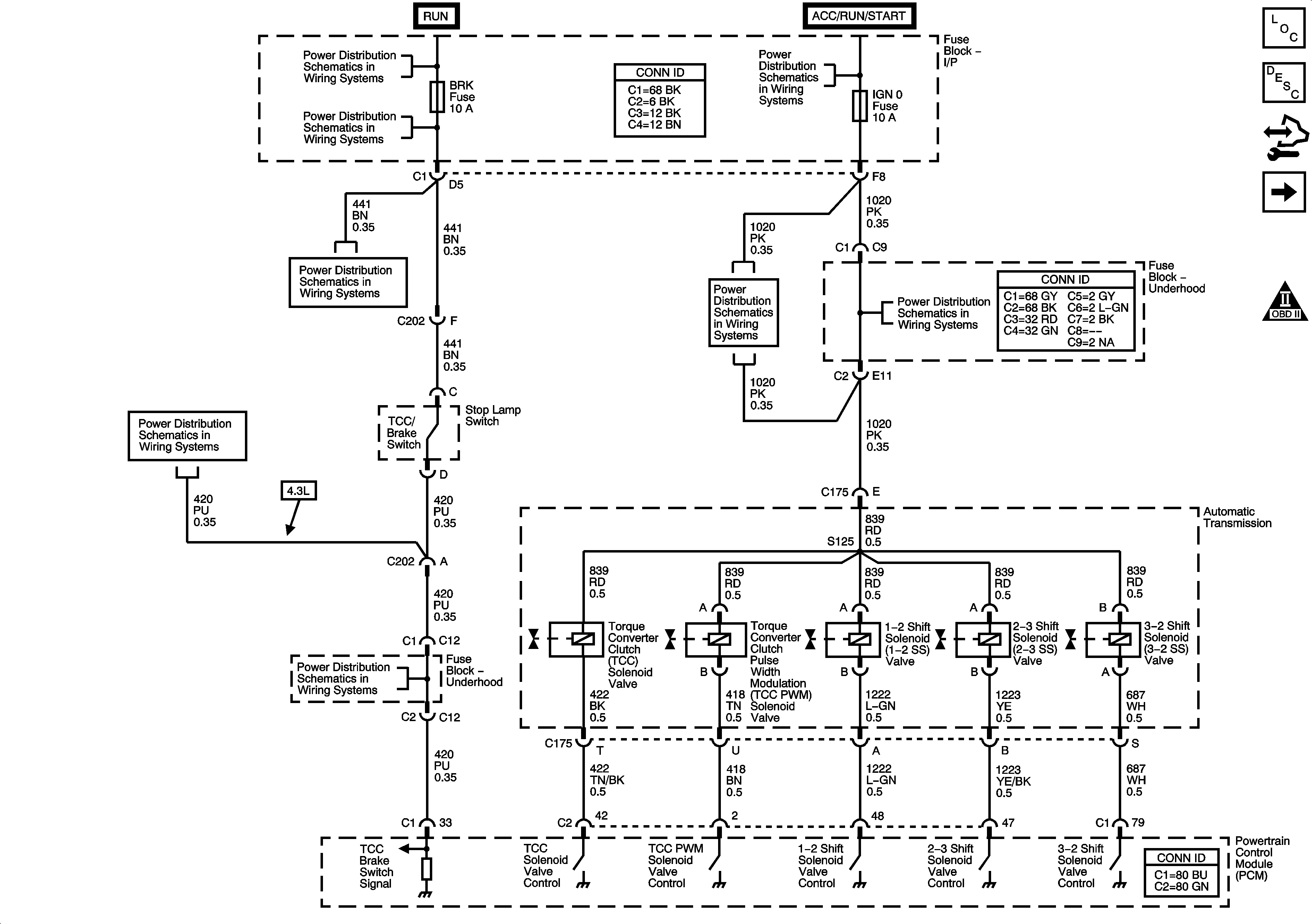

[IMG]4L60E Shift Control and Stop Lamp Switch.gif2020-08-06 14:42 127k
[IMG]4L80E PNP Switch, 4WD Signal, Tow-Haul, Serial Data, and Indicator.gif2020-08-06 14:42 103k

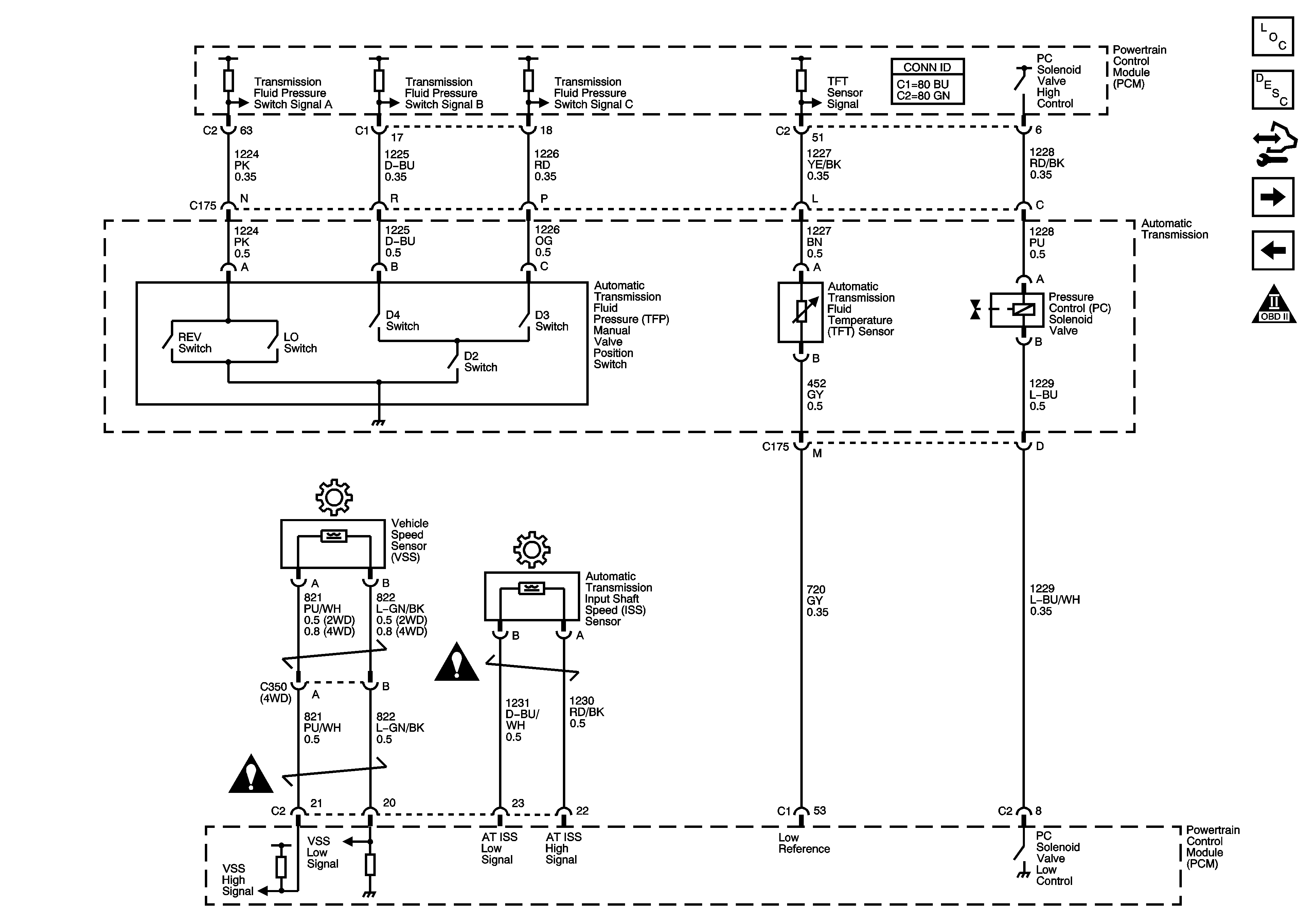

[IMG]4L80E Pressure Controls, Temp, and VSS.gif2020-08-06 14:42 112k
[IMG]4L80E Shift Controls and Stop Lamp Switch.gif2020-08-06 14:42 108k

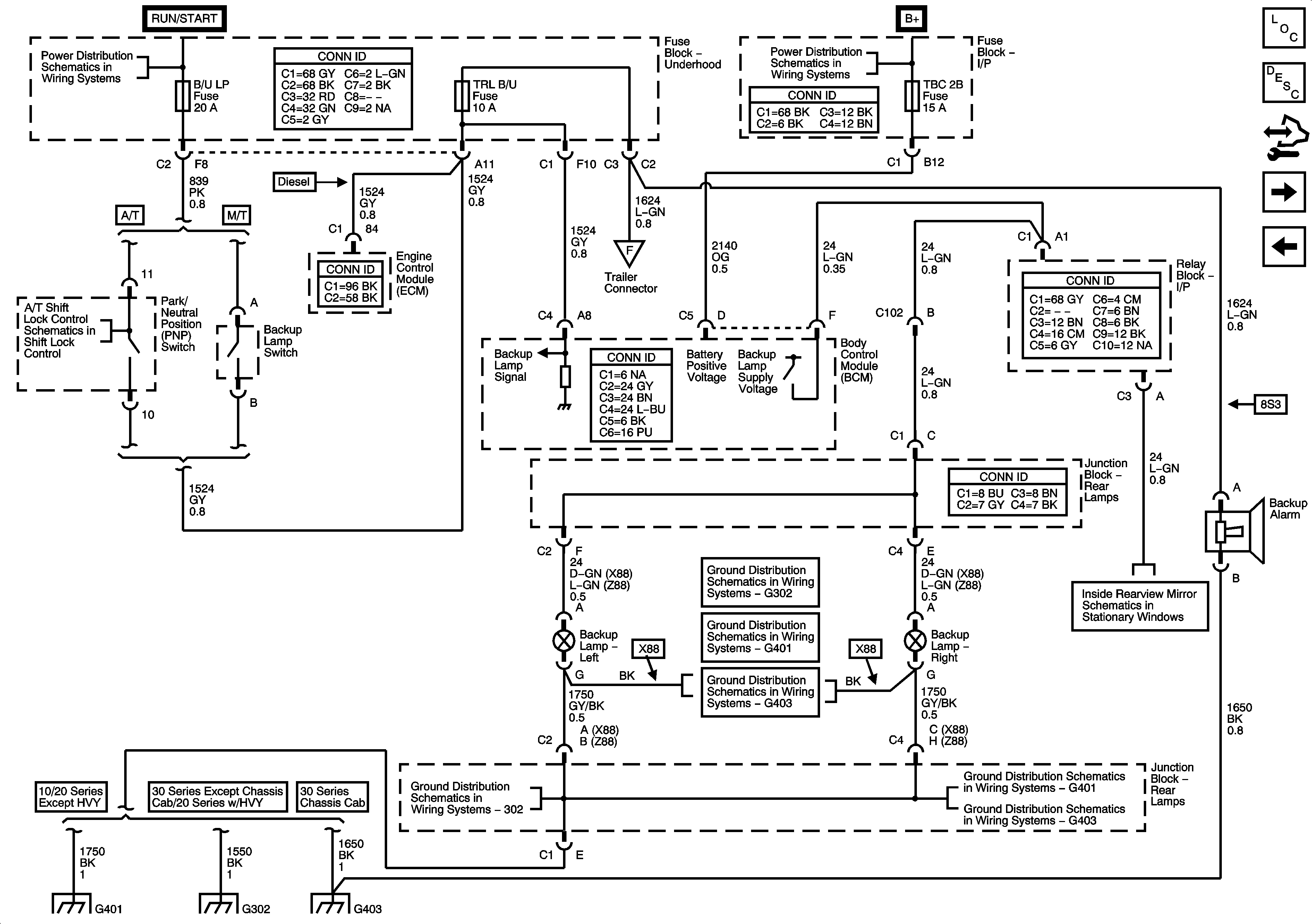

[IMG]Backup Lamps except MW7.gif2020-08-06 14:42 152k
[IMG]Backup Lamps MW7.gif2020-08-06 14:42 150k

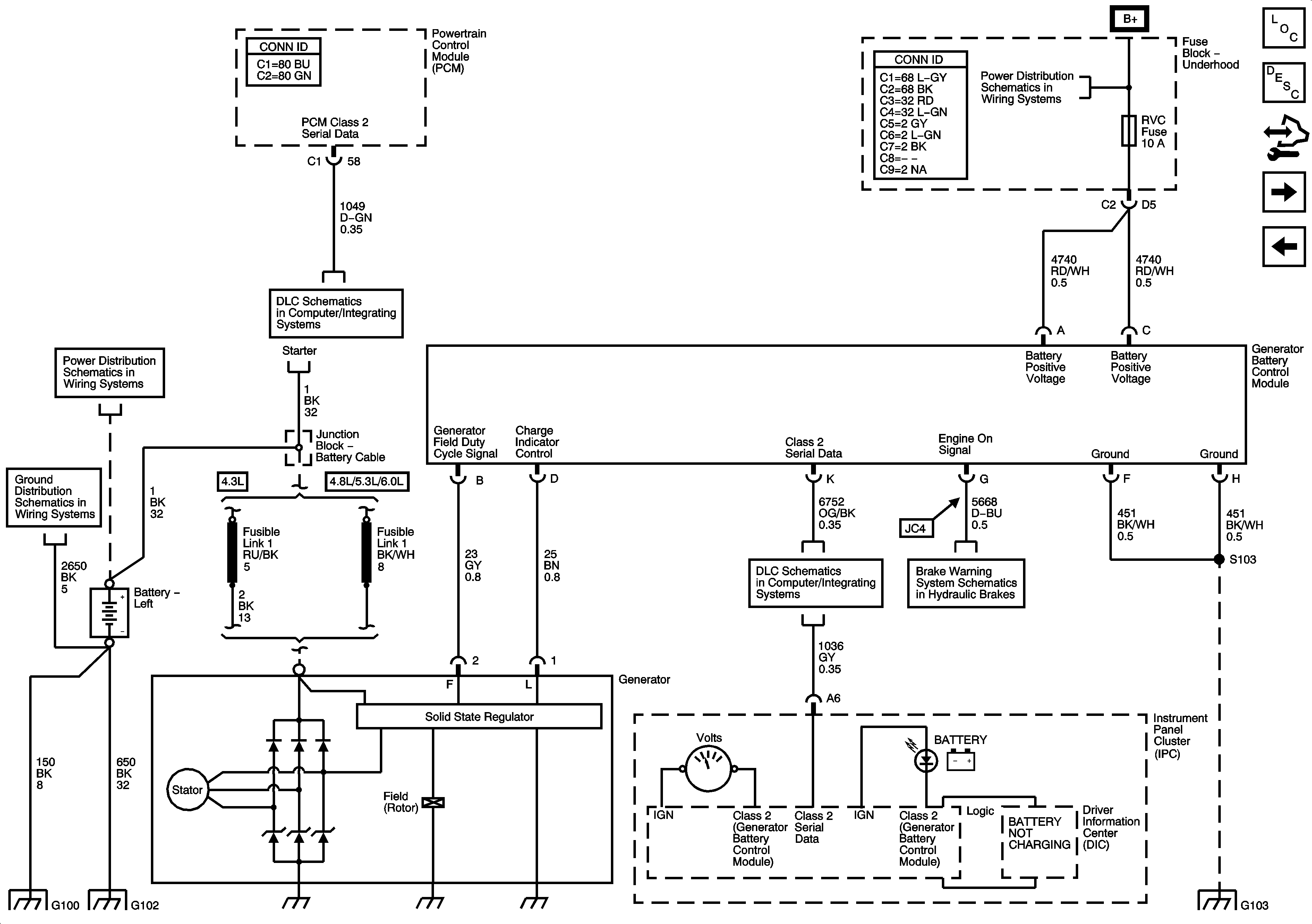

[IMG]Charging 10 Series - Gas 2006.gif2020-08-06 14:42 126k

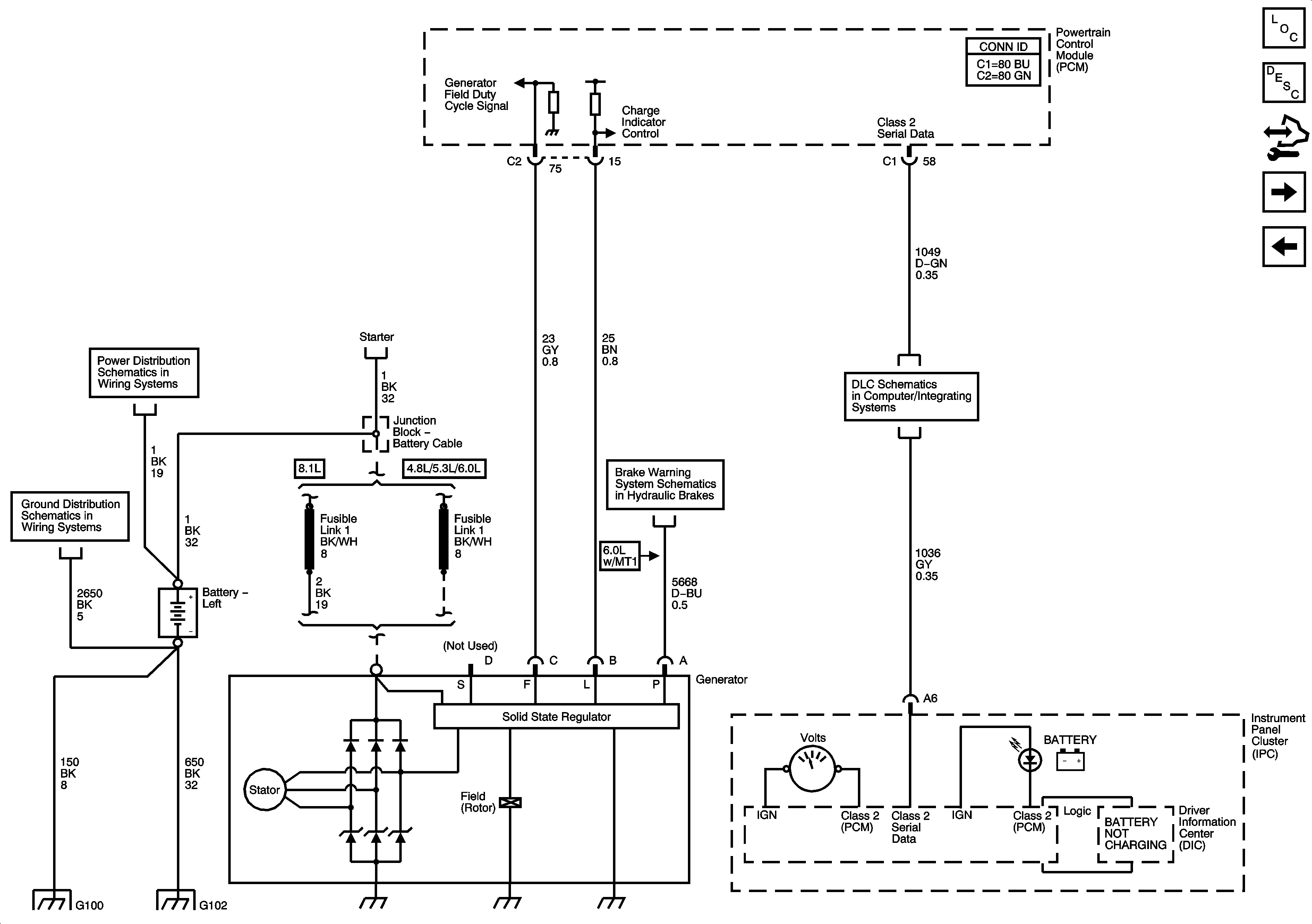

[IMG]Charging 20-30 Series - Gas.gif2020-08-06 14:42 105k

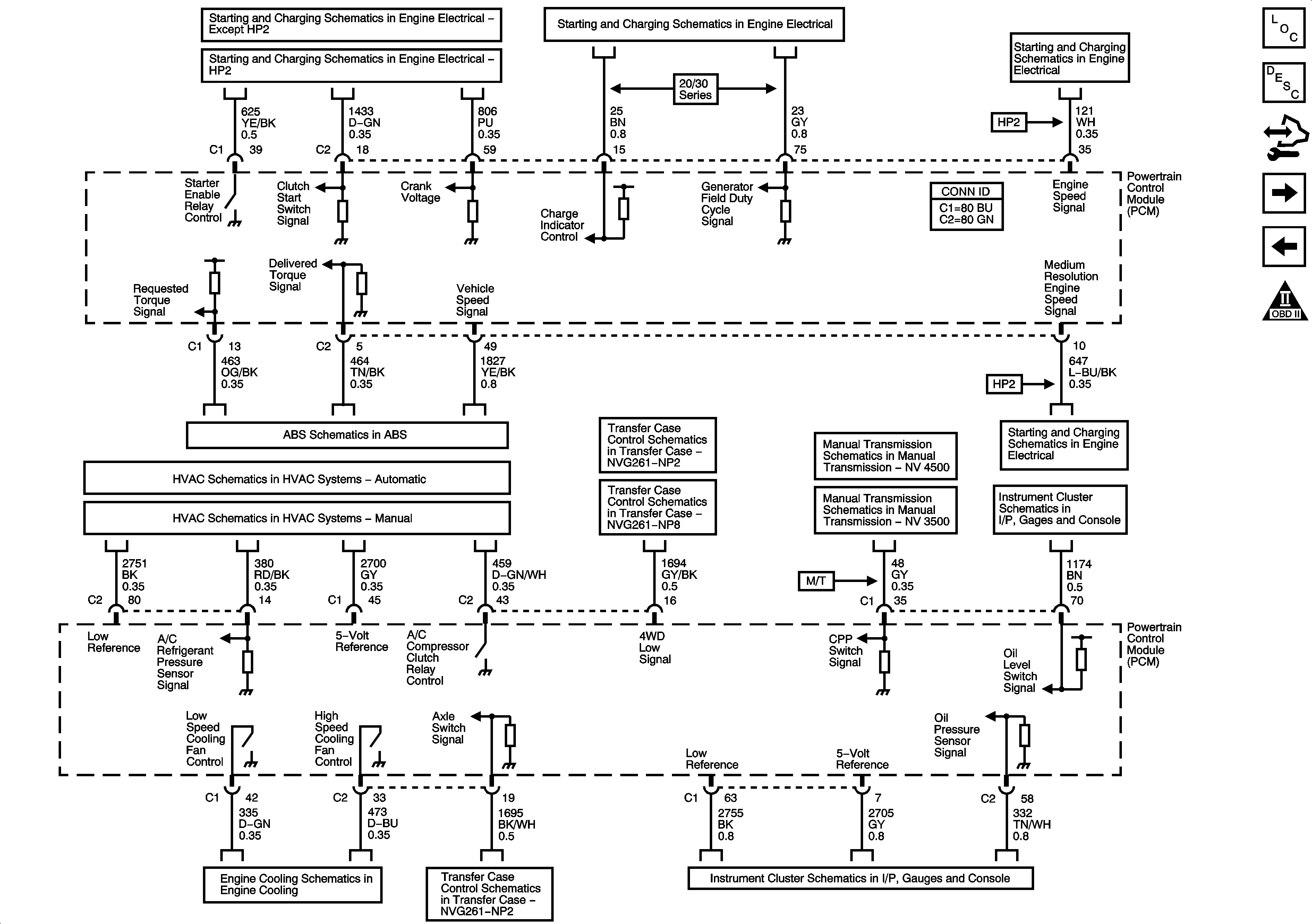

[IMG]Controlled-Monitored Subsystem References.gif2020-08-06 14:42 140k

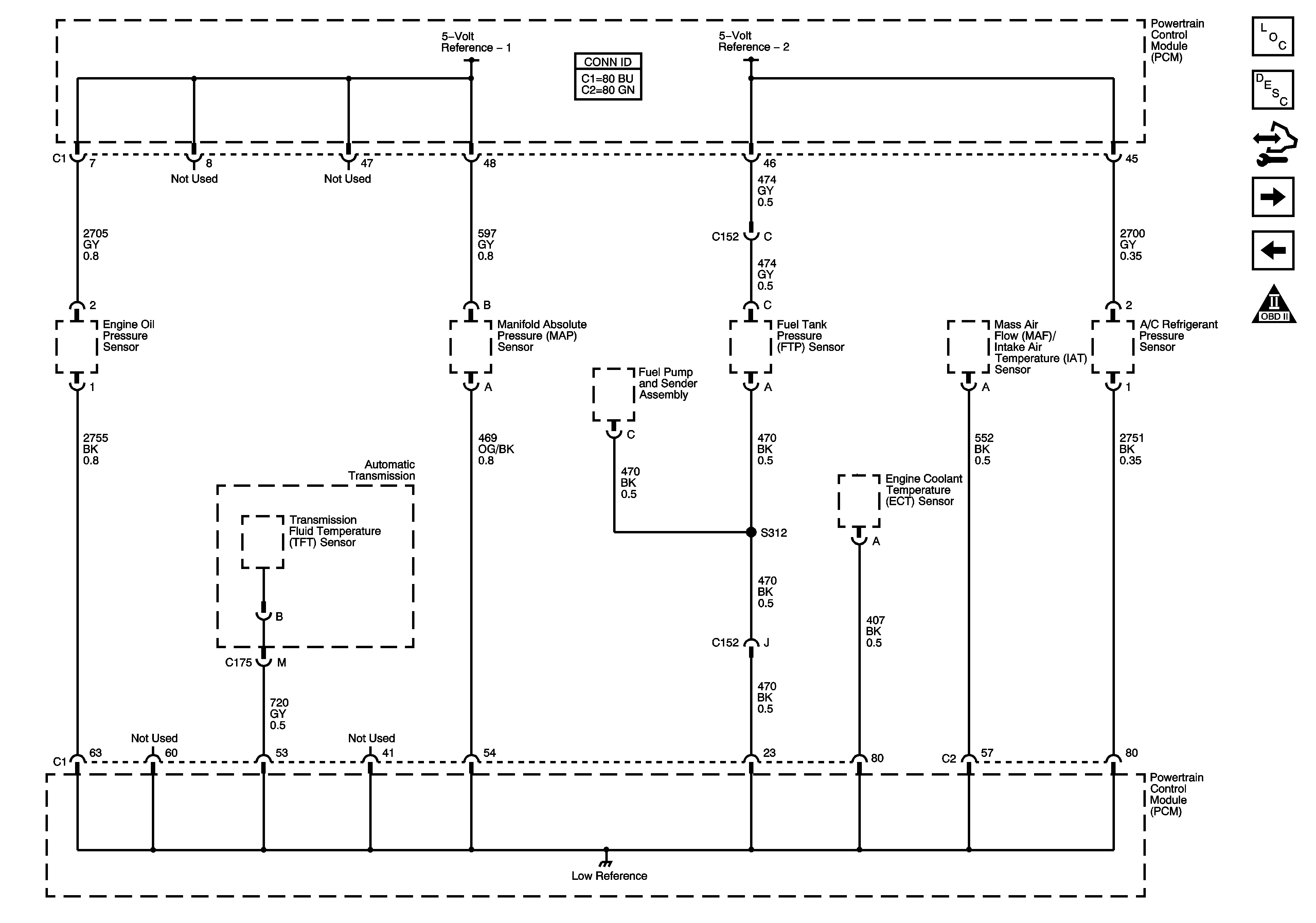

[IMG]Engine Data Sensors - 5-Volt and Low References.gif2020-08-06 14:42 99k

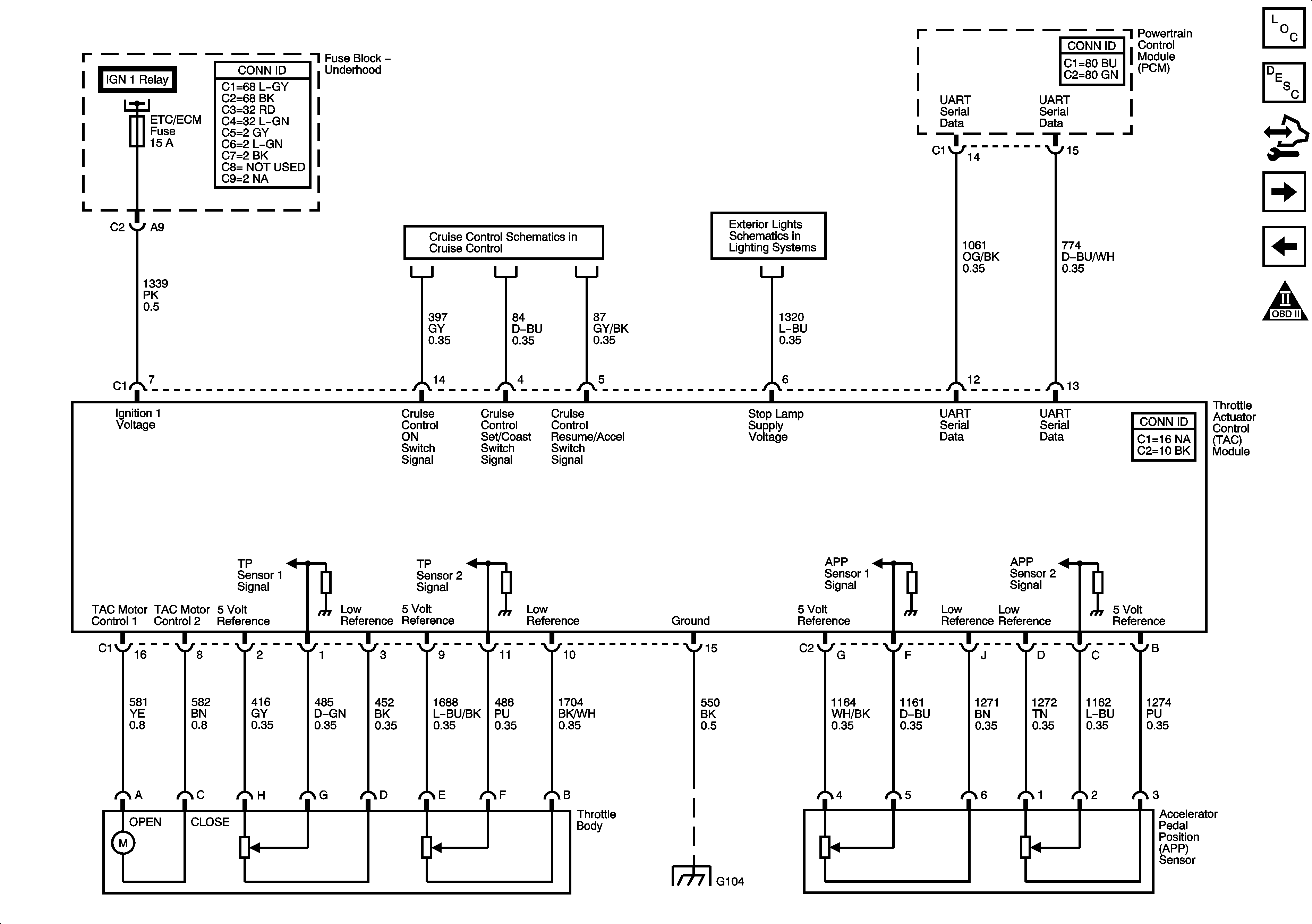

[IMG]Engine Data Sensors - Electronic Throttle Control.gif2020-08-06 14:42 123k

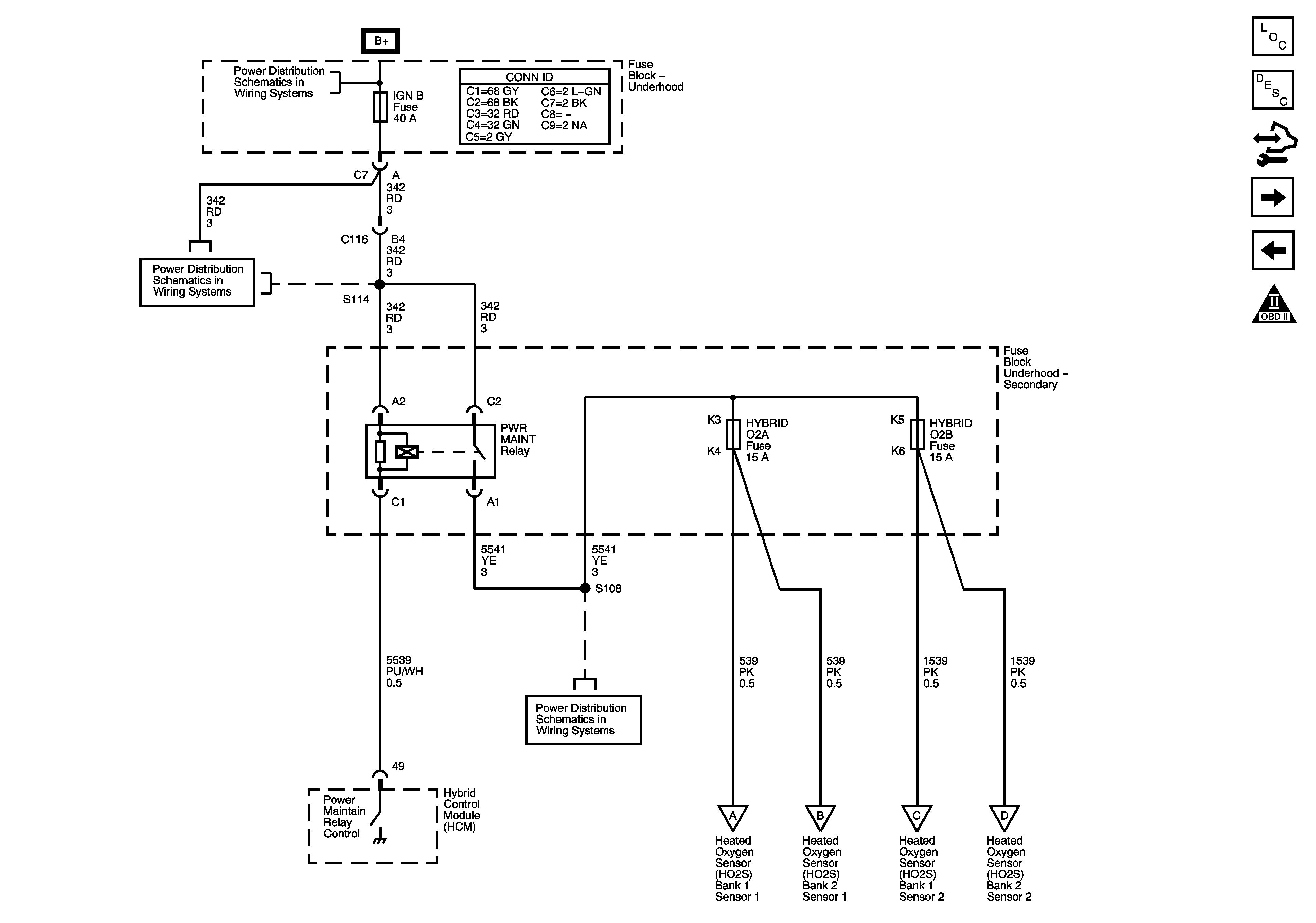

[IMG]Engine Data Sensors - Oxygen Sensors with HP2 1 of 2.gif2020-08-06 14:42 85k

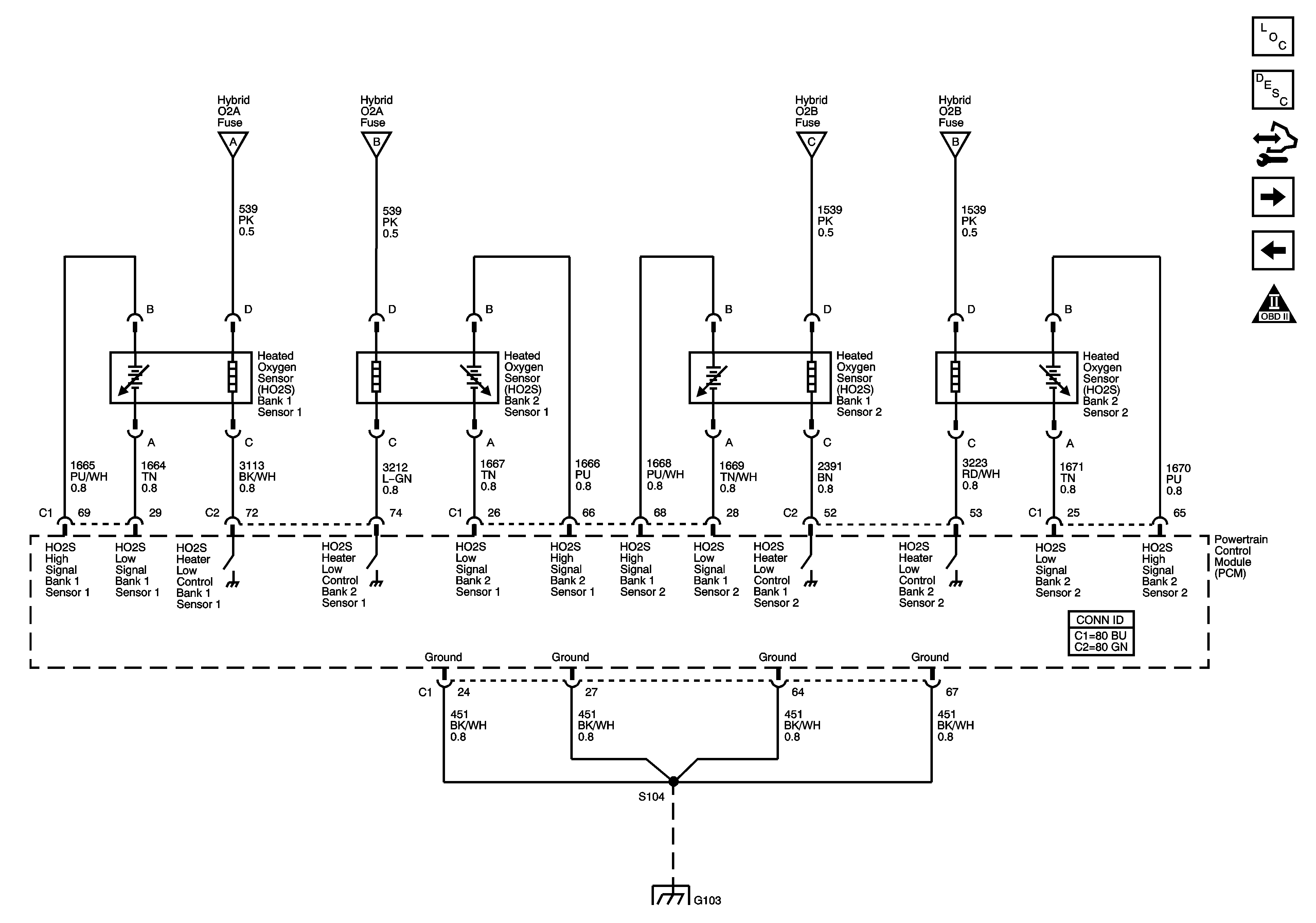

[IMG]Engine Data Sensors - Oxygen Sensors with HP2 2 of 2.gif2020-08-06 14:42 105k
[IMG]Engine Data Sensors - Oxygen Sensors without HP2.gif2020-08-06 14:42 130k

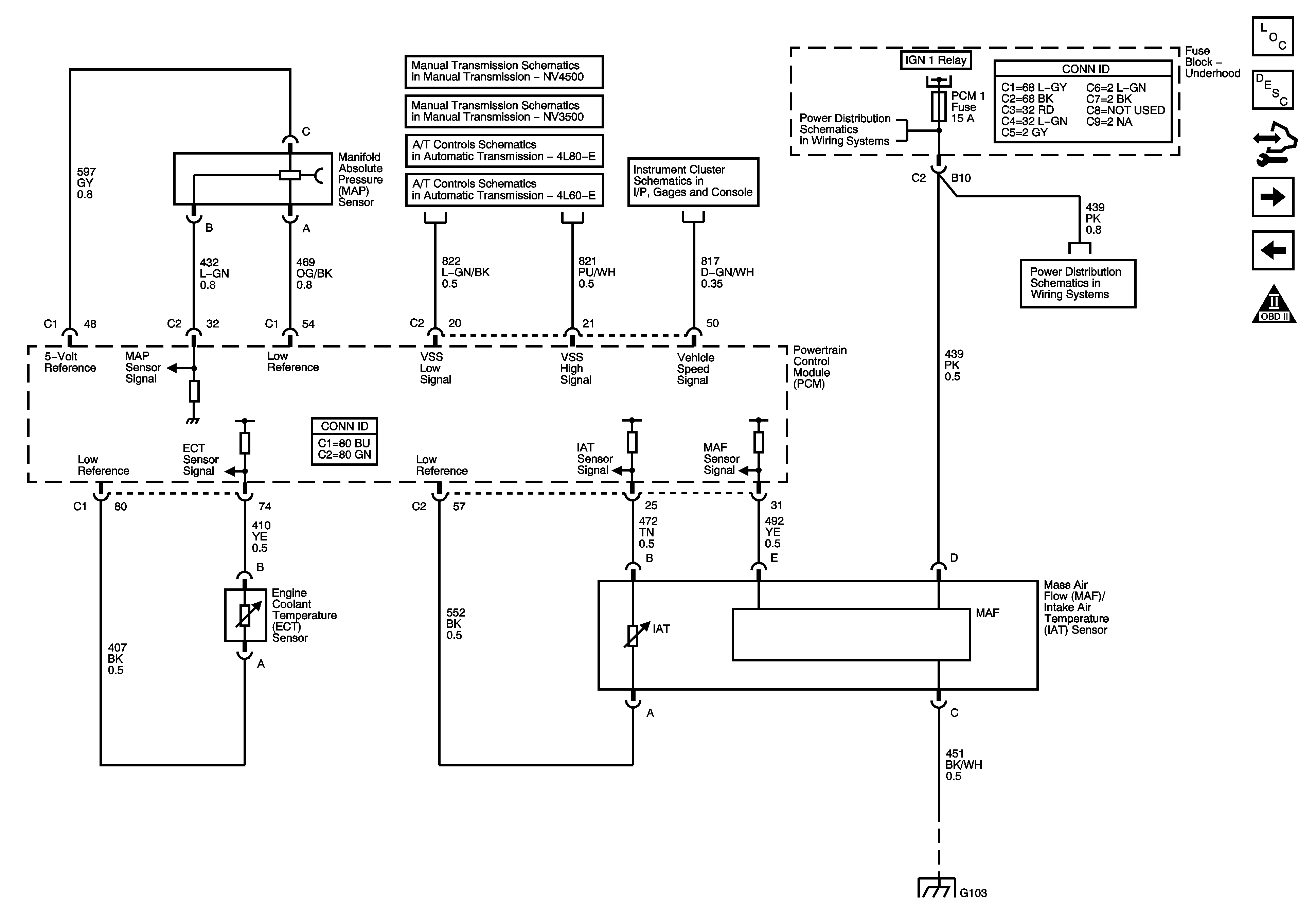

[IMG]Engine Data Sensors - Pressure, Temp, MAF, and VSS.gif2020-08-06 14:42 108k

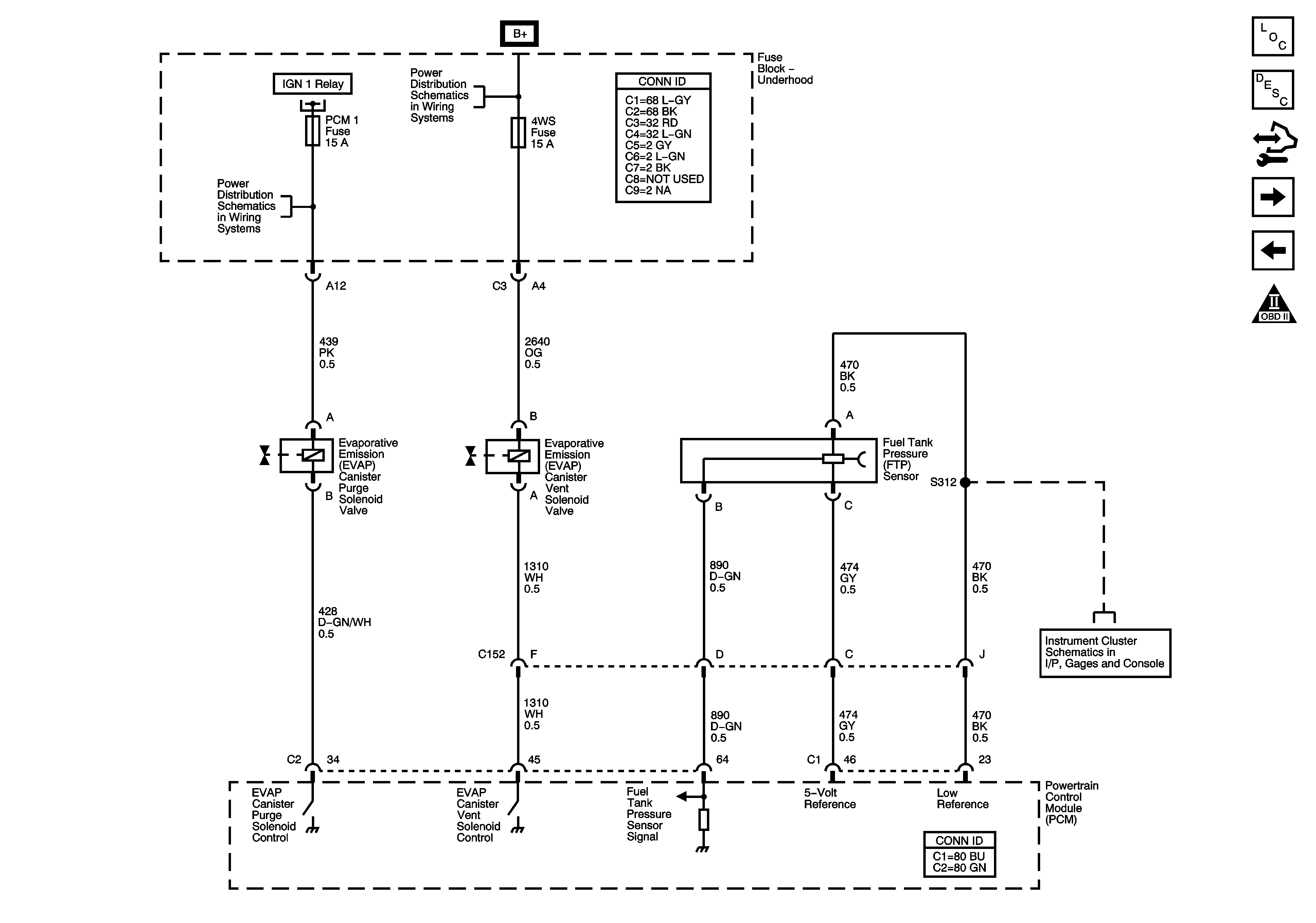

[IMG]Fuel Controls - EVAP Controls and FTP Sensor.gif2020-08-06 14:42 89k
[IMG]Fuel Controls - Fuel Injectors.gif2020-08-06 14:42 107k

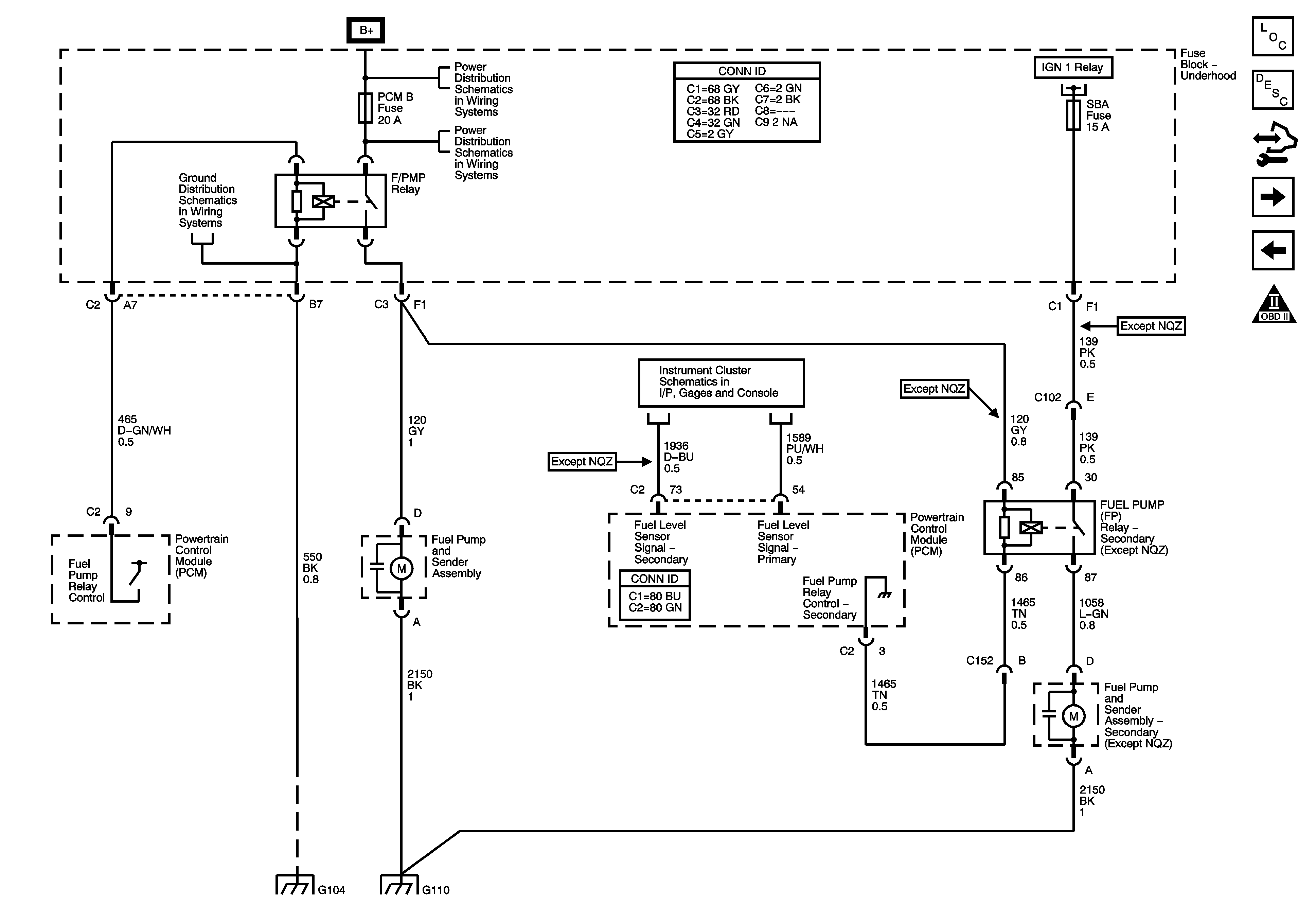

[IMG]Fuel Controls - Fuel Pump Controls.gif2020-08-06 14:42 104k

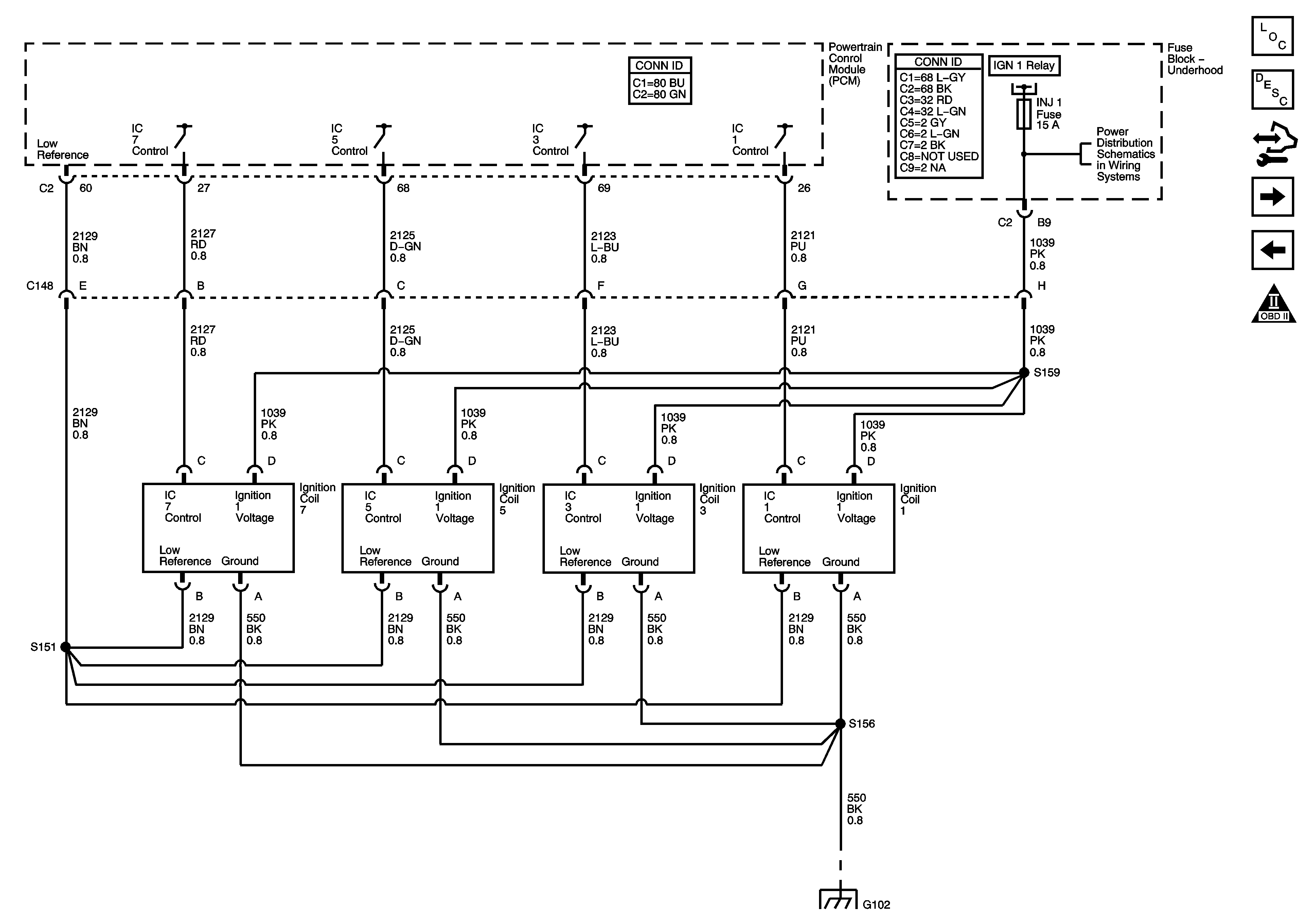

[IMG]Ignition Controls - Ignition System Coils 1,3,5,7.gif2020-08-06 14:42 102k

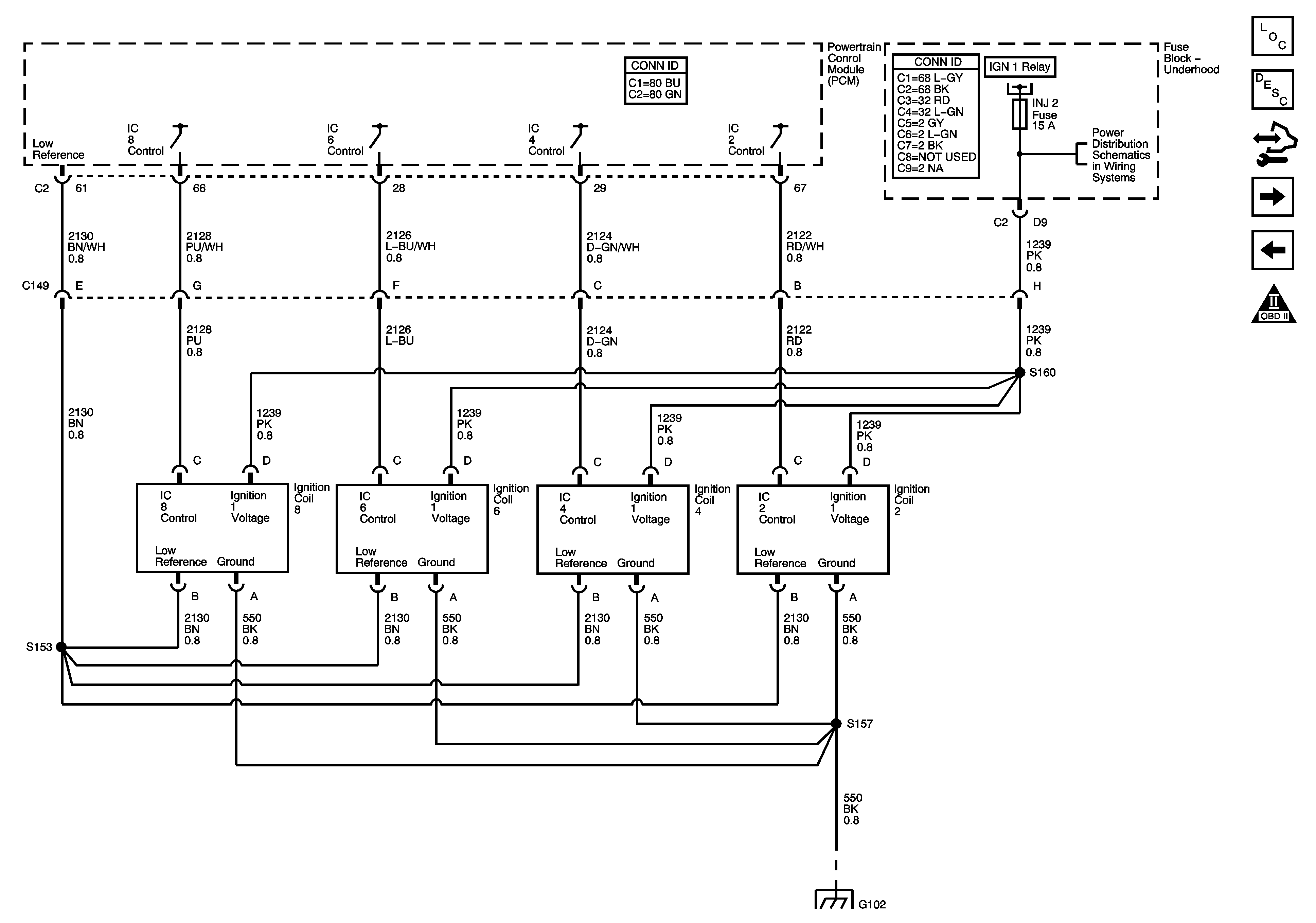

[IMG]Ignition Controls - Ignition System Coils 2,4,6,8.gif2020-08-06 14:42 102k

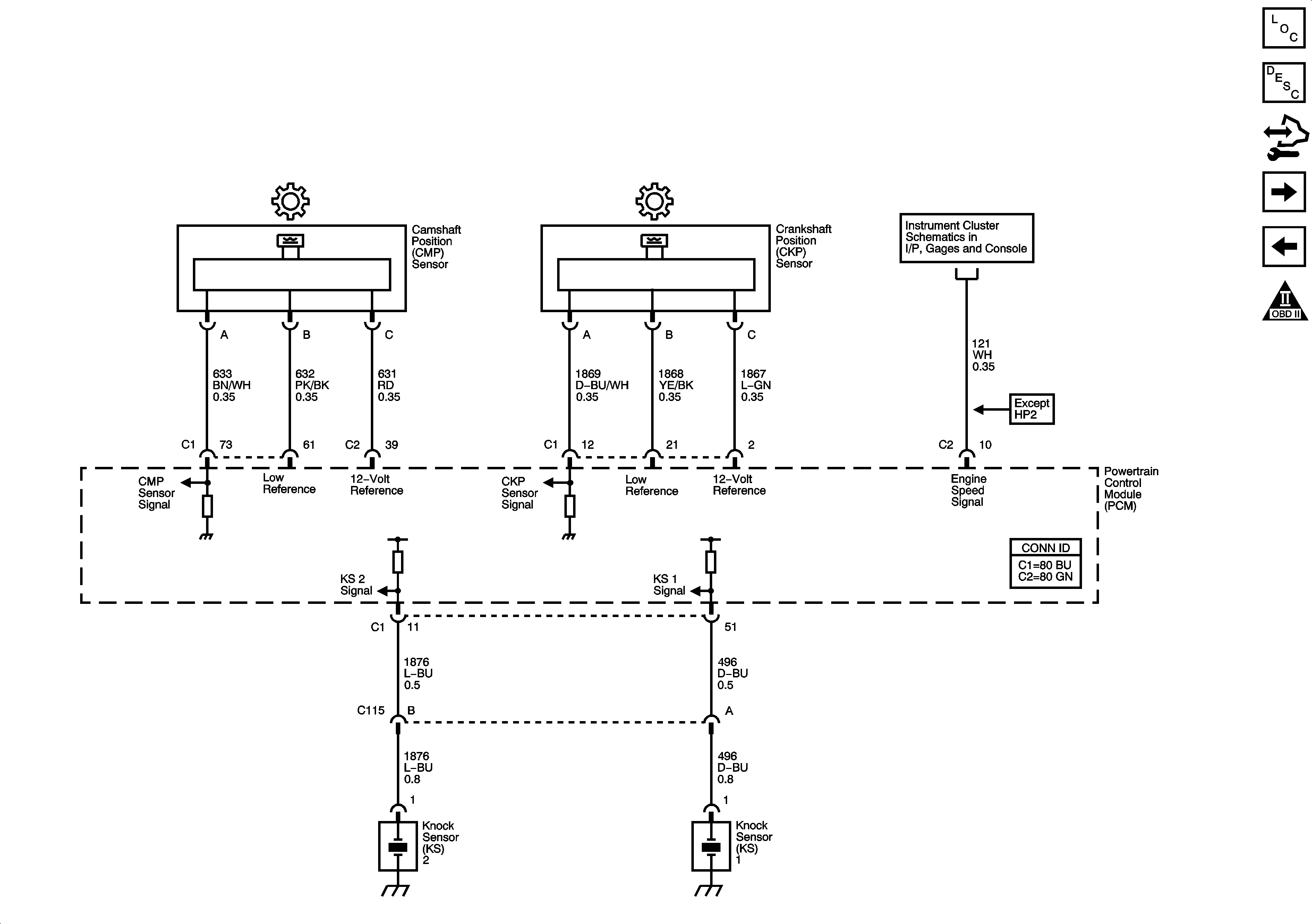

[IMG]Ignition Controls - Sensors.gif2020-08-06 14:42 70k

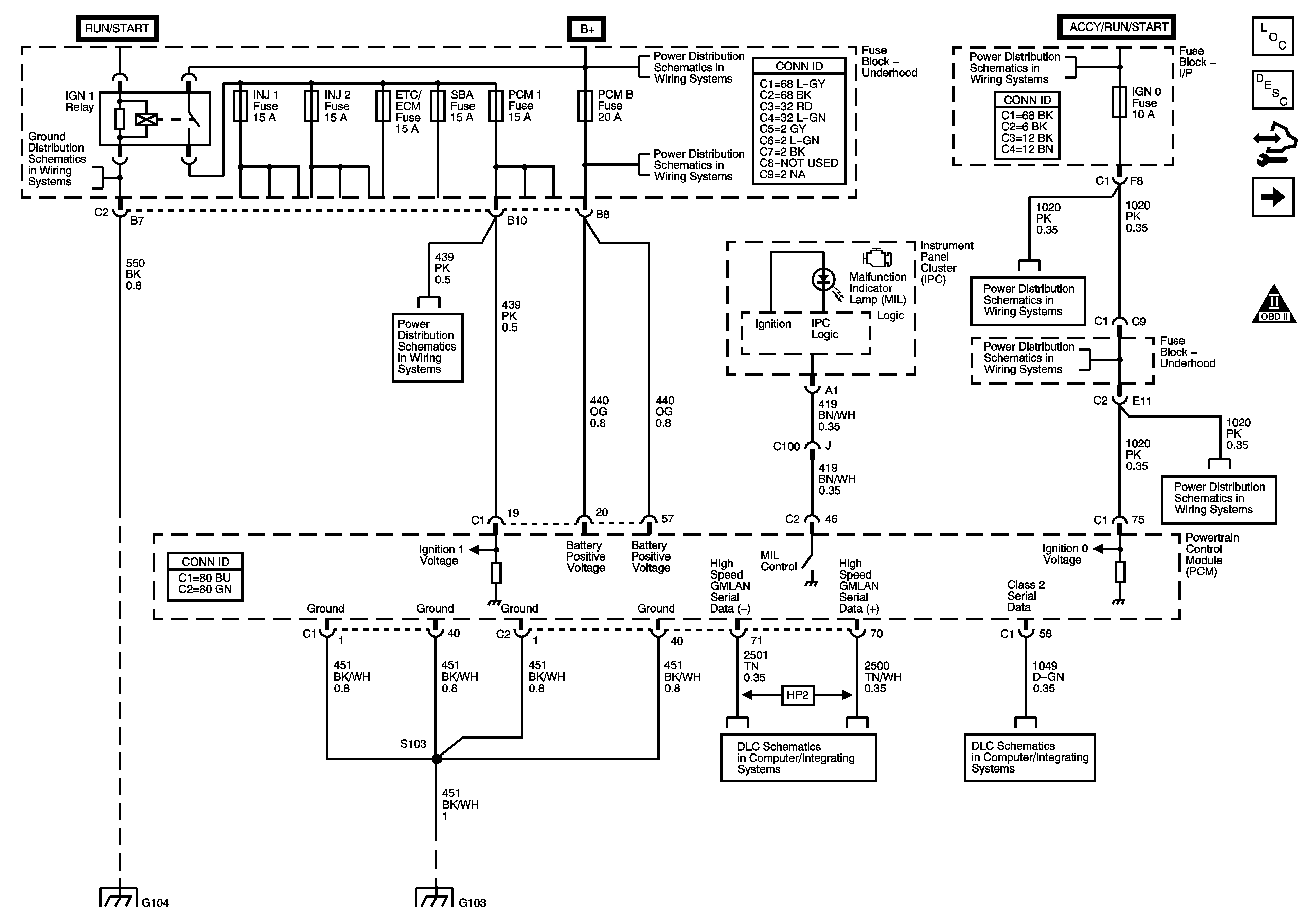

[IMG]Module Power, Ground, Serial Data, and MIL.gif2020-08-06 14:42 141k

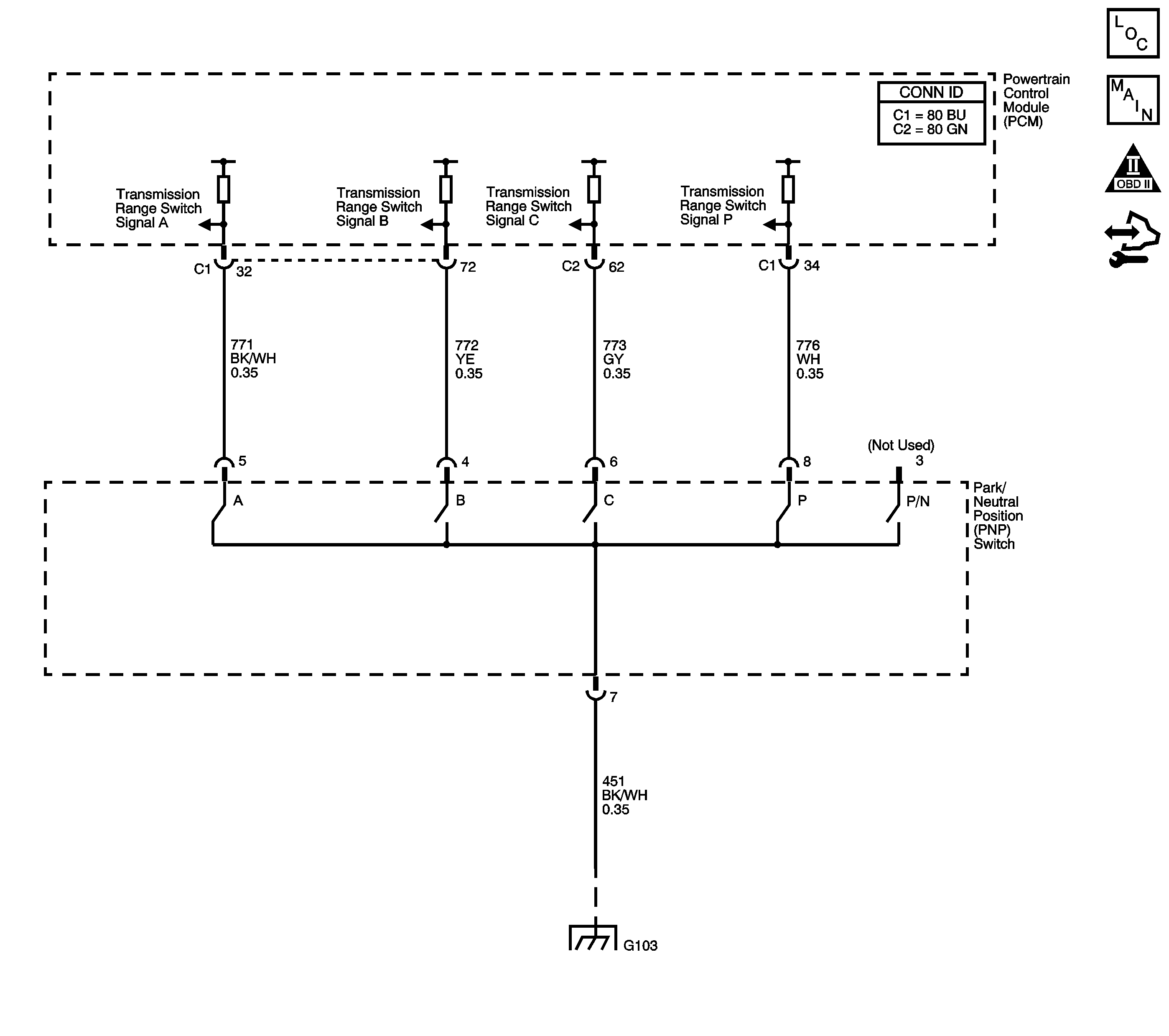

[IMG]Range Selector Switch.gif2020-08-06 14:42 48k

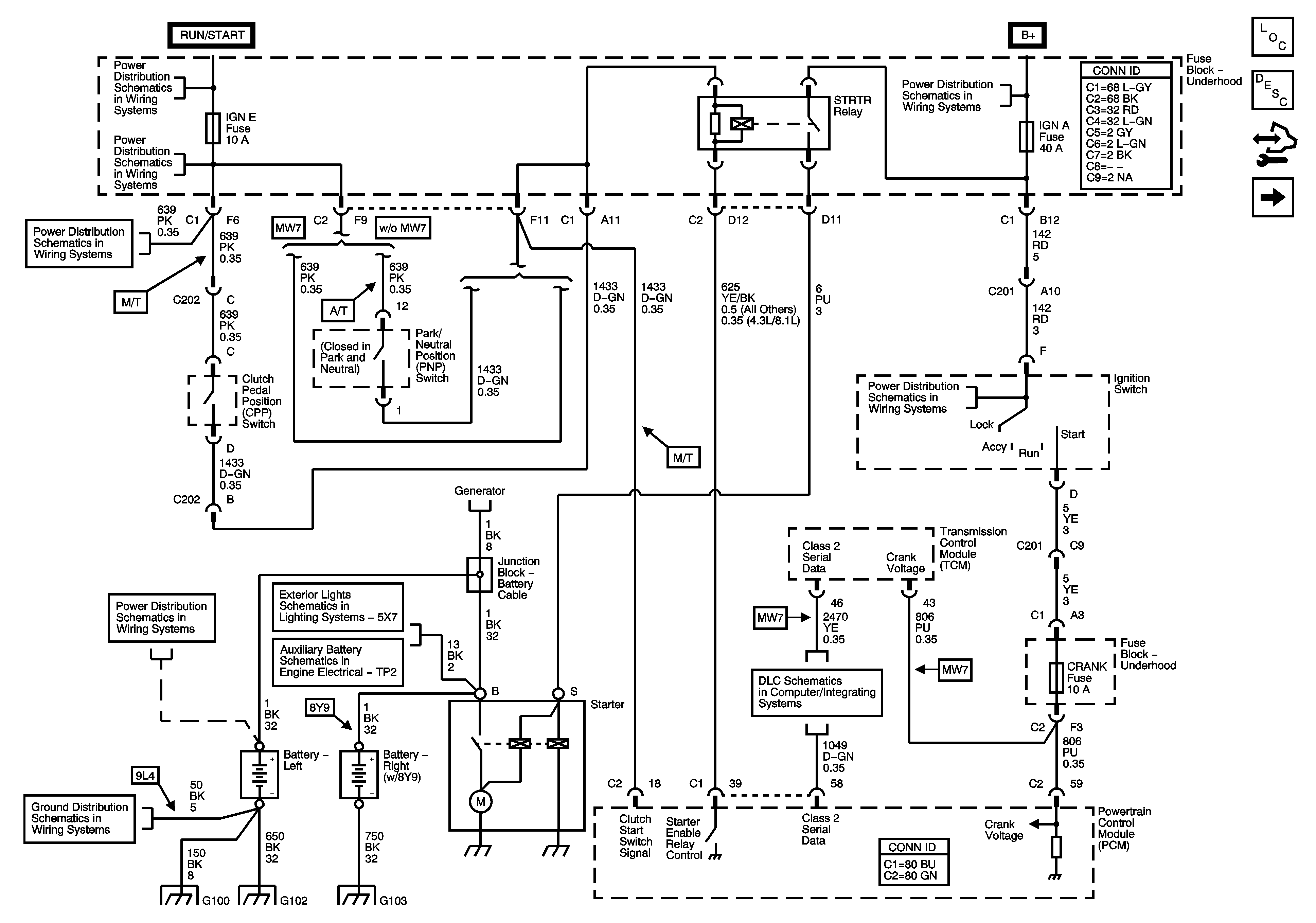

[IMG]Starting - Gas 2006.gif2020-08-06 14:42 157k

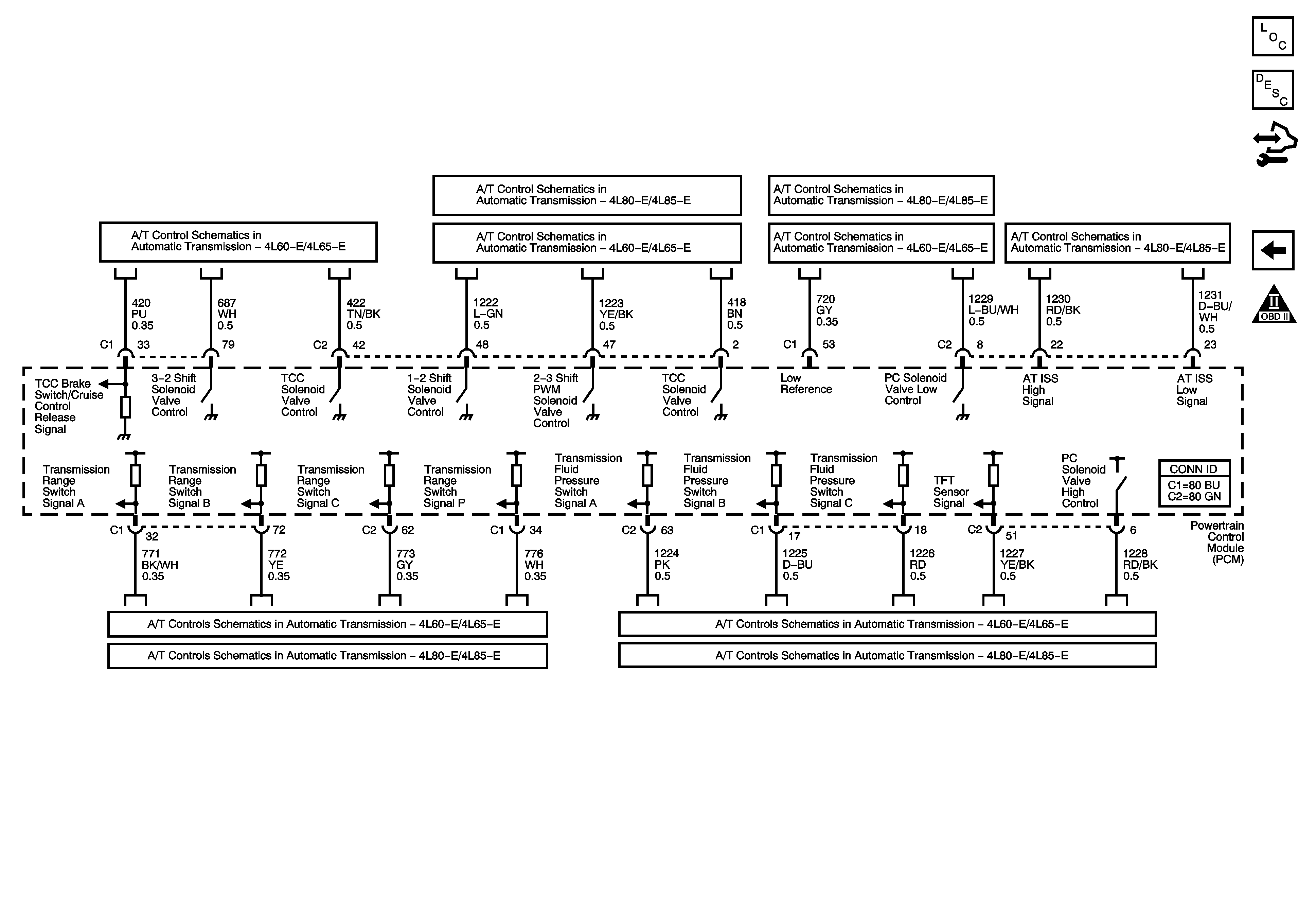

[IMG]Transmission Control References.gif2020-08-06 14:42 109k
